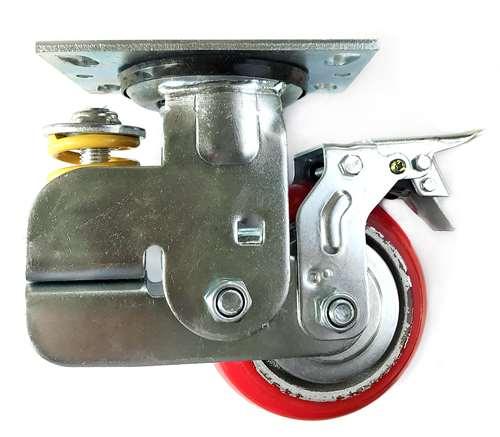

6" spring loaded Caster Wheel 661 Lbs - Brake PU - Cast iron core - Top Plate Mount

6" Inch Caster Wheel 661 pounds Swivel and Upper Brake Polyurethane and Cast iron core Top Plate

VXB013150WBCPUB

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 222mm

Overall Height Inch= 8.740"

Mounting Type= Top Plate

Top Plate Size= 140mm x 108mm

Hole distance= 105mm x 75mm

Wheel Core= Polyurethane and Cast iron core

Tire= Polyurethane and Cast iron core

Bearing type= Ball bearing

Load Capacity= 661 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Mounting VXB013150WBCPUB is the Low cost solution of making a project to move around by pushing or pulling. And rolling on wheel that has 150mm diameter/5.906" inch. Dimensions of the caster wheel is 50mm (1.969" inch). Overall height of the wheel caster is 222mm = 8.740" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 140mm x 108mm with the holes distance of 105mm x 75mm. Low drag was achieved by a Polyurethane and Cast iron core core on a Polyurethane and Cast iron core tire spinning freely with a Ball bearing. Bearing in mind that every caster wheel has the load capacity of 661 lb with a Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Buy the VXB013150WBCPUB now, just add the quantity to basket and click on Checkout.
