Nachi

6009ZZE Nachi Bearing Shielded C3 Japan 45x75x16mm

6009ZZE Nachi Bearing Shielded C3 Japan 45x75x16mm

$35.95 USD
$39.99 USD $35.95 USD
Sale Sold out
Shipping calculated at checkout.
6009ZZE Shielded Nachi Bearings
One Bearing
Made in Japan

6009ZZE Nachi Bearing, the 6009ZZE inner diameter is 45mm, the 6009ZZE outer diameter is 75mm, 6009ZZE width is 16mm.

  • 6009ZZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 45mm x 75mm x 16mm/Metric
  • ID (inner diameter)/Bore: 45mm
  • OD (outer diameter): 75mm
  • Width: 16mm
  • Size: 45 x 75 x 16 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 20,900 N
  • Static load rating Cor: 15,200 N
  • Limiting Speed:
    • Grease Lubrication: 9,200 RPM
  • Equal: 6009 ZZ / 6009 2Z
  • Made in Japan

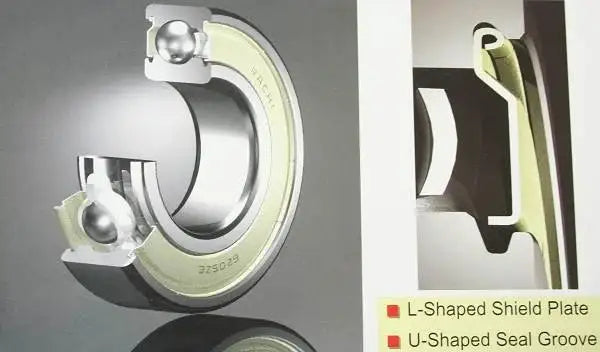

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
