6013ZZE Nachi Bearing Shielded C3 Japan 65x100x18mm

6013ZZE Nachi Bearing Shielded C3 Japan 65x100x18mm

$52.31 USD
$58.19 USD $52.31 USD
Sale Sold out
Shipping calculated at checkout.
6013ZZE Shielded Nachi Bearing
One Bearing
Made in Japan

6013ZZE Nachi Bearing, the 6013ZZE inner diameter is 65mm, the 6013ZZE outer diameter is 100mm, 6013ZZE width is 18mm.

  • 6013ZZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 65mm x 100mm x 18mm/Metric
  • ID (inner diameter)/Bore: 65mm
  • OD (outer diameter): 100mm
  • Width: 18mm
  • Size: 65 x 100 x 18 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 30,500 N
  • Static load rating Cor: 25,200 N
  • Limiting Speed:
    • Grease Lubrication: 6,700 RPM
  • Made in Japan
  • Equal: 6013 ZZ / 6013 2Z

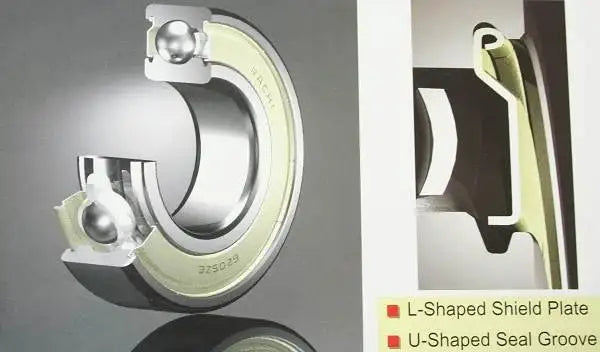

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
