Nachi

6022ZZE Nachi Bearing Shielded C3 Japan 110x170x28 Large

6022ZZE Nachi Bearing Shielded C3 Japan 110x170x28 Large

$112.83 USD
$125.52 USD $112.83 USD
Sale Sold out
Shipping calculated at checkout.
6022ZZE Nachi Bearing
One Bearing
Made in Japan

6022ZZE Nachi Bearing, the 6022ZZE inner diameter is 110mm, the 6022ZZE outer diameter is 170mm, 6022ZZE width is 28mm.

  • 6022ZZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 110mm x 170mm x 28mm/Metric
  • ID (inner diameter)/Bore: 110mm
  • OD (outer diameter): 170mm
  • Width: 28mm
  • Size: 110 x 170 x 28 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 84500 N
  • Static load rating Cor: 73000 N
  • Limiting Speed:
    • Grease Lubrication: 3800 RPM
  • Equal: 6022 ZZ / 6022 2Z
  • Made in Japan

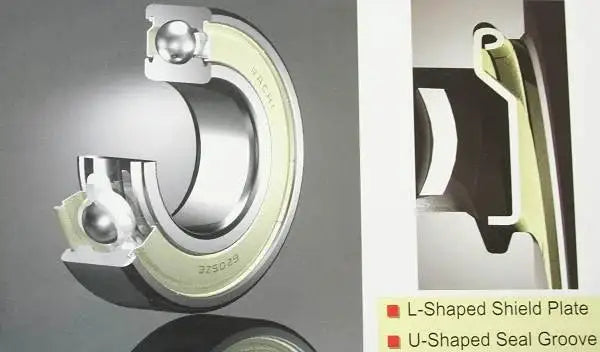

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
The Best Components Yield the Greatest Bearing Performance
Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
