Nachi

6208ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 40x80x18 Bearing

6208ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 40x80x18 Bearing

$35.95 USD
$39.99 USD $35.95 USD
Sale Sold out
Shipping calculated at checkout.
6208ZZENR Nachi Bearing
With Snap Ring (C clip)
Made in Japan

6208ZZENR Nachi Bearing with a Snap Ring, the 6208ZZENR inner diameter is 40mm, the 6208ZZENR outer diameter is 80mm, 6208ZZENR width is 18mm.

  • 6208ZZENR Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (ZZ) for added protection ZNR/ZZNR/2ZNR
  • Clearance: C3 (increased internal clearance for higher speed or thermal expansion)
  • Equal: 6208 ZZ / 6208 2Z
  • Dimensions: 40mm x 80mm x 18mm/Metric
  • ID (inner diameter)/Bore: 40mm
  • OD (outer diameter): 80mm
  • Width: 18mm
  • Size: 40 x 80 x 18 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 29,100 N
  • Static load rating Cor: 17,900 N
  • Limiting Speed:
    • Grease Lubrication: 8,700 RPM
  • Made in Japan

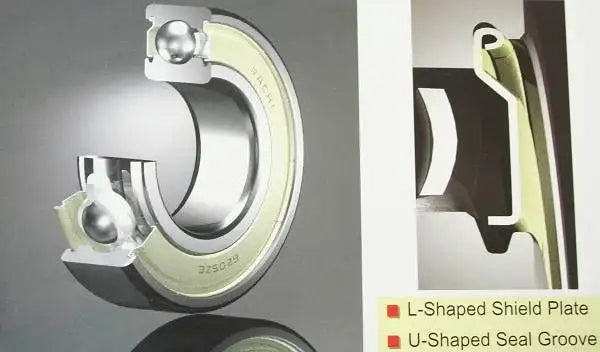

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
