6211ZZENR Nachi Bearing Shielded C3 Snap Ring 55x100x21 Bearing

6211ZZENR Nachi Bearing Shielded C3 Snap Ring 55x100x21 Bearing

$61.10 USD
$67.97 USD $61.10 USD
Sale Sold out
Shipping calculated at checkout.
6211ZZENR Nachi Bearing
With Snap Ring (C clip)
Made in Japan

6211ZZENR Nachi Bearing with a Snap Ring, the 6211ZZENR inner diameter is 55mm, the 6211ZZENR outer diameter is 100mm, 6211ZZENR width is 21mm.

  • 6211ZZENR Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (ZZ) for added protection ZNR/ZZNR/2ZNR
  • Clearance: C3 (increased internal clearance for higher speed or thermal expansion)
  • Dimensions: 55mm x 100mm x 21mm/Metric
  • ID (inner diameter)/Bore: 55mm
  • OD (outer diameter): 100mm
  • Width: 21mm
  • Size: 55 x 100 x 21 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 43,500 N
  • Static load rating Cor: 29,300 N
  • Limiting Speed:
    • Grease Lubrication: 6,400 RPM
  • Equal: 6211 ZZ / 6211 2Z
  • Made in Japan

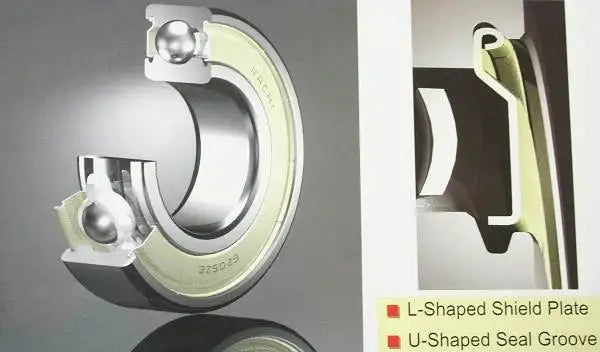

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
