Nachi

6220ZZE Nachi Bearing Shielded C3 Japan 100x180x34 Large

6220ZZE Nachi Bearing Shielded C3 Japan 100x180x34 Large

$202.22 USD
$224.96 USD $202.22 USD
Sale Sold out
Shipping calculated at checkout.
6220ZZE Nachi Bearing
100mm x 180mm x 34mm
Made in Japan

6220ZZE Nachi Bearing, the 6220ZZE inner diameter is 100mm, the 6220ZZE outer diameter is 180mm, 6220ZZE width is 34mm.

  • 6220ZZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 100mm x 180mm x 34mm/Metric
  • ID (inner diameter)/Bore: 100mm
  • OD (outer diameter): 180mm
  • Width: 34mm
  • Size: 100 x 180 x 34 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 122,000 N
  • Static load rating Cor: 93,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,600 RPM
  • Equivalents: 220KDD, 220SS, 6220.2ZR, 220SFF, 6220-2Z and 6220ZZE
  • Made in Japan

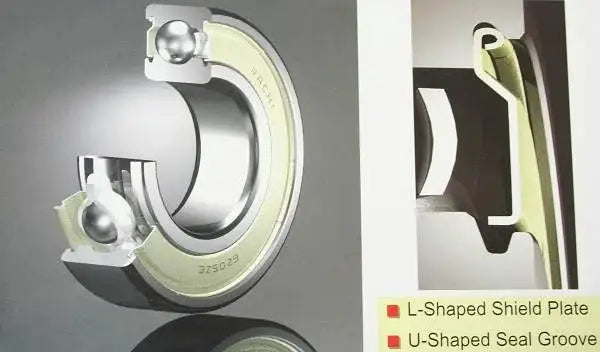

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
