Nachi

6228ZZE Nachi Bearing Shielded C3 Japan 140x250x42 Large

6228ZZE Nachi Bearing Shielded C3 Japan 140x250x42 Large

$897.99 USD
$998.99 USD $897.99 USD
Sale Sold out
Shipping calculated at checkout.
6228ZZE Nachi Bearing
140mm x 250mm x 42mm
Made in Japan

6228ZZE Nachi Bearing, the 6228ZZE inner diameter is 140mm, the 6228ZZE outer diameter is 250mm, 6228ZZE width is 42mm.

  • 6228ZZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 140mm x 250mm x 42mm/Metric
  • ID (inner diameter)/Bore: 140mm
  • OD (outer diameter): 250mm
  • Width: 42mm
  • Size: 140 x 250 x 42 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 166,000 N
  • Static load rating Cor: 150,000 N
  • Limiting Speed:
    • Grease Lubrication: 2,500 RPM
  • Equivalents: 228KDD, 228SS, 6228.2ZR, 228SFF, 6228-2Z and 6228ZZE
  • Made in Japan

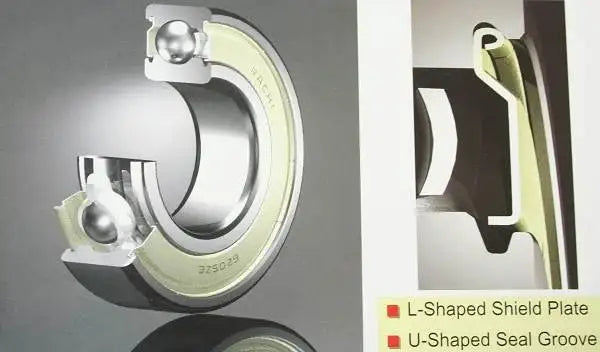

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
