Nachi

6303ZZE Nachi Bearing Shielded C3 Japan 17x47x14mm

6303ZZE Nachi Bearing Shielded C3 Japan 17x47x14mm

$10.36 USD
$14.99 USD $10.36 USD
Sale Sold out
Shipping calculated at checkout.
6303ZZE Nachi Bearing
17mm x 47mm x 14mm
Made in Japan

6303ZZE Nachi Bearing, the 6303ZZE inner diameter is 17mm, the 6303ZZE outer diameter is 47mm, 6303ZZE width is 14mm.

  • 6303ZZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Equal: 6303 ZZ / 6303 2Z
  • Dimensions: 17mm x 47mm x 14mm/Metric
  • ID (inner diameter)/Bore: 17mm
  • OD (outer diameter ): 47mm
  • Width: 14mm
  • Size: 17 x 47 x 14 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 13,600 N
  • Static load rating Cor: 6,550 N
  • Limiting Speed:
    • Grease Lubrication: 16,000 RPM
  • Made in Japan

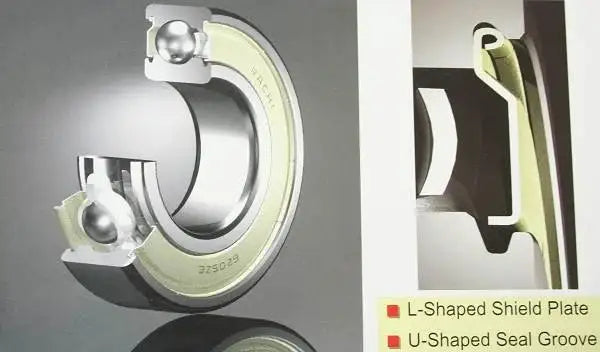

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
