Nachi

6328ZZE Nachi Bearing Shielded C3 Japan 140x300x62 Large

6328ZZE Nachi Bearing Shielded C3 Japan 140x300x62 Large

$1,877.79 USD
$2,088.99 USD $1,877.79 USD
Sale Sold out
Shipping calculated at checkout.
6328ZZE Nachi Bearing
140mm x 300mm x 62mm
Made in Japan

6328ZZE Nachi Bearing, the 6328ZZE inner diameter is 140mm, the 6328ZZE outer diameter is 300mm, 6328ZZE width is 62mm.

  • 6328ZZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 140mm x 300mm x 62mm/Metric
  • ID (inner diameter)/Bore: 140mm
  • OD (outer diameter): 300mm
  • Width: 62mm
  • Size: 140 x 300 x 62 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 253,000 N
  • Static load rating Cor: 246,000 N
  • Limiting Speed:
    • Grease Lubrication: 2,200 RPM
  • Equal: 6328 ZZ / 6328 2Z
  • Made in Japan

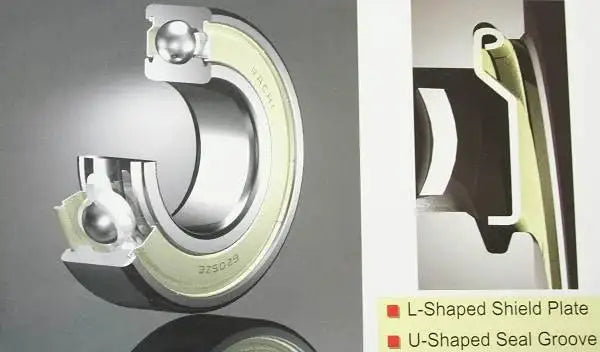

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
