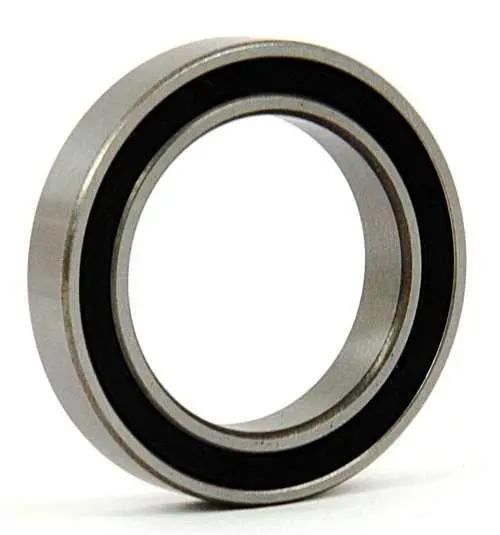

6803-2RS Bearing 17x26x5mm - Sealed

6803-2RS Bearing - Sealed Ball Bearing
✨ 17mm x 26mm x 5mm - Electric Motor Quality - One Bearing

This 6803-2RS Bearing is a slim-profile deep groove ball bearing built for high RPM and tight tolerance needs. It’s sealed on both sides with rubber to lock out dust and debris, and pre-lubricated so you’re ready to go.

🟢 Size: 17mm ID x 26mm OD x 5mm Width
🟢 Type: Deep groove radial bearing
🟢 Material: Chrome Steel (rings and balls)
🟢 Cage: Steel
🟢 Closures: Double sealed (2RS - rubber)
🟢 Radial Clearance: C0 (standard)
🟢 Lubrication: Grease-packed (sealed for life)
🟢 Dynamic Load: 2,630 N
🟢 Static Load: 1,570 N
🟢 Max Speed (Grease): 15,000 RPM
🟢 Quantity: 1 bearing
🟢 Quality Grade: EMQ - Electric Motor Quality

📏 Dimensions Table (mm):
