6805-2RS Ball Bearing - Deep Groove 6805RS

6805-2RS Sealed Deep Groove Ball Bearing - Slim Profile

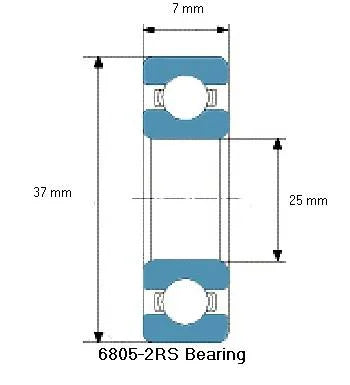

✨ 25mm ID - 37mm OD - 7mm Wide

The 6805-2RS is a slim, single-row deep groove ball bearing engineered for compact spaces requiring smooth, efficient rotation. Equipped with rubber seals on both sides and pre-lubricated with grease, it’s ideal for electric motors, cycling hubs, and lightweight machinery where low friction and high speed are essential.

🟢 Type: Single-row deep groove ball bearing (sealed)
🟢 Inner diameter: 25mm
🟢 Outer diameter: 37mm
🟢 Width: 7mm
🟢 Seals: Double rubber seals (2RS)
🟢 Clearance: 1-11µm
🟢 Inner ring tolerance: 0 to -12µm
🟢 Outer ring tolerance: 0 to -13µm
🟢 Lubrication: Grease pre-lubricated
🟢 Max grease-lubricated speed: 11,000 RPM
🟢 Dynamic load rating (Cr): 4.36 kN
🟢 Static load rating (Cor): 2.6 kN
🟢 Quantity: 1 bearing
🟢 Brand: VXB
🟢 Equivalents: 61805-2RS1, Koyo 6805-2RS, Nachi 6805-2NSL, NTN 6805LLU, FAG 6805-2RS, NSK 6805DD
