7003C P4 high precision Angular Ball Bearing with 15 degrees contact angle. Bearing is ABEC-7 (P4) quality. 7003C P4 inner diameter is 17mm, outer diameter is 35mm, and width is 10mm.
- 7003C P4 Ball Bearing
- High precision Angular Ball Bearing
- Cage: PA66+ 30% NTE264B
- Quality: ABEC-7 (P4 quality)
- Dimensions: 17mm x 35mm x 10mm/Metric
- ID (inner diameter)/Bore: 17mm
- OD (outer diameter): 35mm
- Width: 10mm
- Size: 17 x 35 x 10 mm
- Quantity: 1 Bearing
- Dynamic load rating Cr: 6,700 N
- Static load rating Cor: 4,900 N
- Limiting Speed:
- Grease Lubrication: 45,000 RPM
- Oil Lubrication: 67,000 RPM

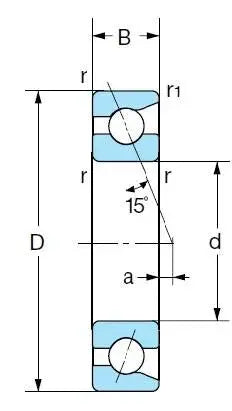

| Dimensions |
|---|
| d |
D |
B |
| 17mm |
35mm |
10mm |
|
