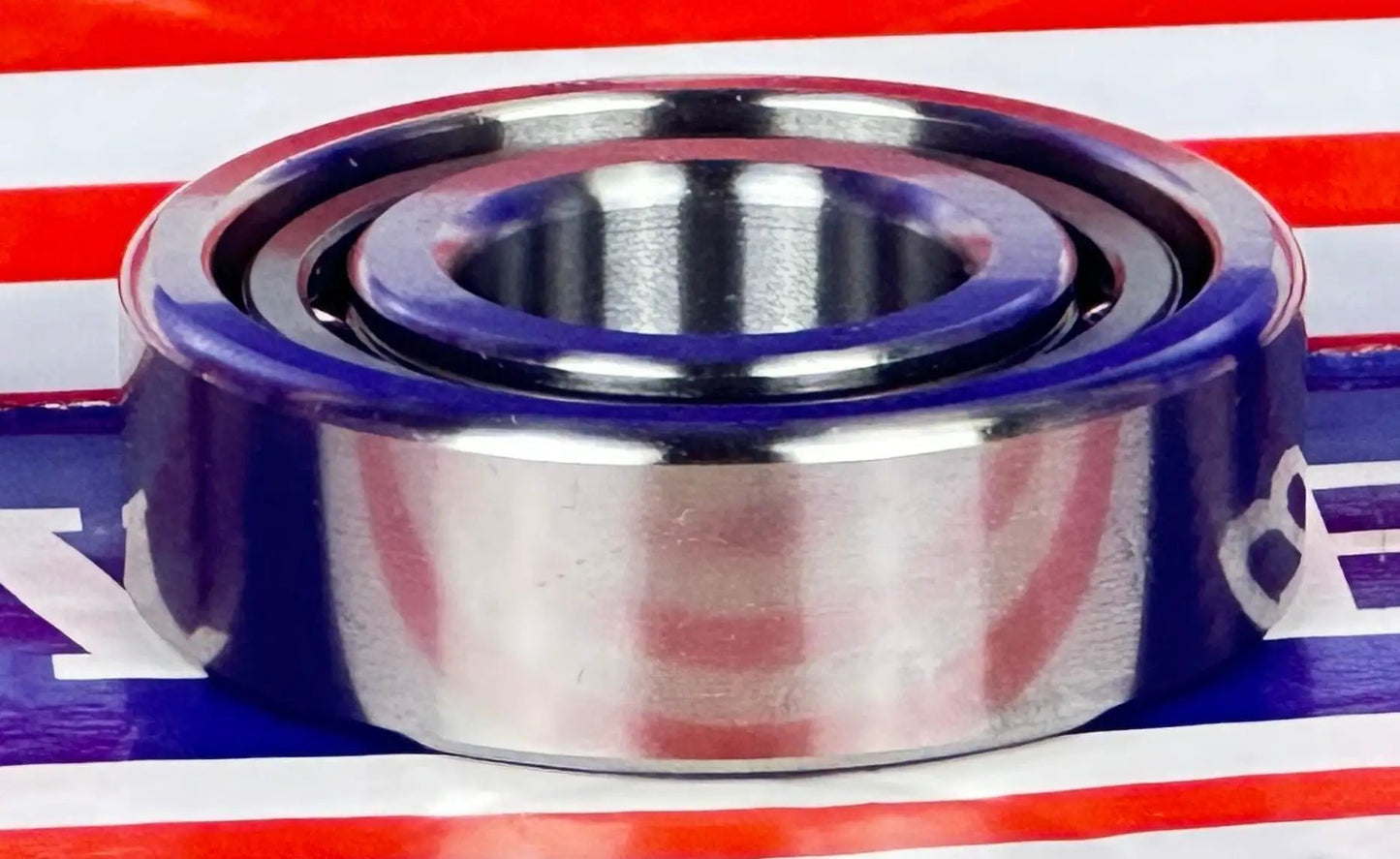

7203C P4 high precision Angular Ball Bearing with 15 degrees contact angle. Inner diameter is 17mm, outer diameter is 40mm, and width is 12mm.
- 7203C P4 Ball Bearing
- High Precision Angular Ball Bearing
- Cage: PA66+ 30% NTE264B
- Quality: ABEC-7 (P4 quality)
- Dimensions: 17mm x 40mm x 12mm/Metric
- ID (inner diameter)/Bore: 17mm
- OD (outer diameter): 40mm
- Width: 12mm
- Size: 17 x 40 x 12 mm
- Quantity: 1 Bearing
- Dynamic load rating Cr: 11,300 N
- Static load rating Cor: 7,400 N
- Limiting Speed:
- Grease Lubrication: 40,000 RPM
- Oil Lubrication: 60,000 RPM
| Dimensions |
|---|
| d |
D |
B |
| 17mm |
40mm |
12mm |
|
