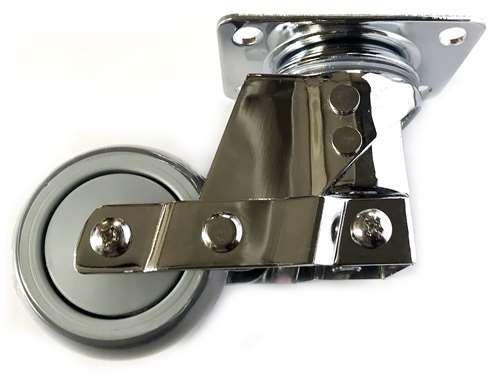

76mm Caster Wheel - PU - Top Plate Mount

76mm Caster Wheel 165 pounds Swivel Polyurethane Top Plate

VXB013076BCPUS

Wheel Diameter= 76mm

Wheel Width= 32mm

Overall Height= 112mm

Overall Height Inch= 4.409"

Mounting Type= Top Plate

Top Plate Size= 95mm x 70mm

Hole distance= 75mm x 52mm

Wheel Core= Polyurethane

Tire= Polyurethane

Bearing type= Ball bearing

Load Capacity= 165 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB013076BCPUS. Diameter size of the caster wheel has a metric standard 76mm which is equal to 2.992" inch with imperial units. The thickness of the wheel is 32mm or 1.260" inch. The caster dimensions heightwise is 112mm/4.409" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 95mm x 70mm and holes distance of 75mm x 52mm. The Ball bearing design will enable the Polyurethane tire to roll easily with a core made from Polyurethane. Each caster will carry the load of 165 lb and is Swivel type. Environment temperature range is -40 to 180 F. Very important notice, you need to buy the VXB013076BCPUS in order to get one :).
