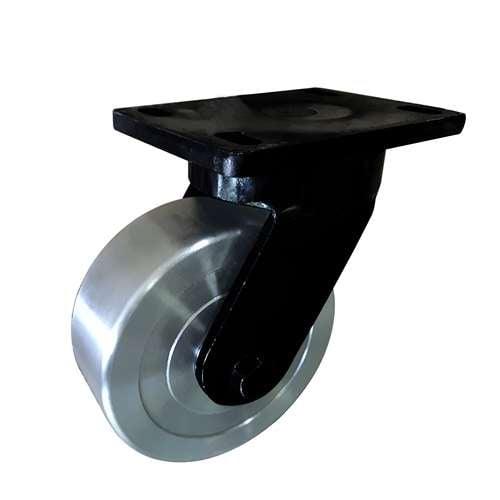

8" Caster Wheel 3307 Lbs - Cast iron PU - Top Plate Mount

8" Inch Caster Wheel 3307 pounds Swivel Cast iron polyurethane Top Plate

VXB009C200BFS

Extra Heavy Duty

Wheel Diameter= 200mm

Wheel Width= 75mm

Wheel Diameter= 8" Inch = 200mm

Overall Height= 275mm

Overall Height Inch= 10.827"

Mounting Type= Top Plate

Top Plate Size= 200mm x 153mm Top Plate: 14mm+housing: 10mm

Hole distance= 160mm x 90mm

Wheel Core= Cast iron polyurethane

Tire= Cast iron polyurethane

Bearing type= Precision double ball bearing

Load Capacity= 3307 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Mounting VXB009C200BFS is the Low cost solution of making a project to move around by pushing or pulling. And rolling on wheel that has 200mm diameter/7.874" inch. Dimensions of the caster wheel is 75mm (2.953" inch). The caster dimensions heightwise is 275mm/10.827" inch. Mounted via a Top Plate that has the size of 200mm x 153mm Top Plate: 14mm+housing: 10mm and the holes distance of 160mm x 90mm. Low drag was achieved by a Cast iron polyurethane core on a Cast iron polyurethane tire spinning freely with a Precision double ball bearing. Each caster will carry the load of 3307 lb and is Swivel type. Environment temperature range is -40 to 180 F. Very important notice, you need to buy the VXB009C200BFS in order to get one :).
