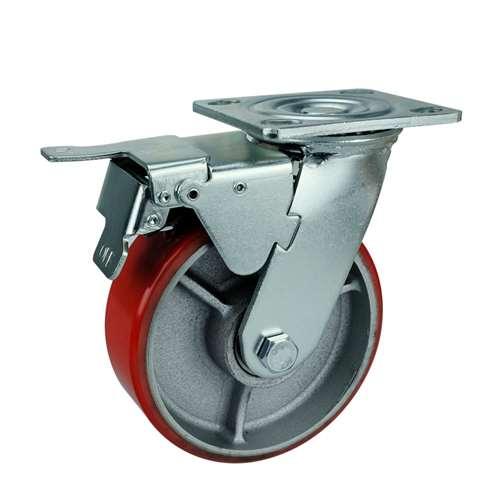

8" Heavy Duty Caster Wheel 1190 Lbs - Brake Cast Iron - PU - Top Plate Mount

8" Inch Caster Wheel 1190 pounds Swivel and Upper Brake Cast Iron and Polyurethane Top Plate

VXB005C200CPUB2

Heavy Duty

Wheel Diameter= 200mm

Wheel Width= 50mm

Wheel Diameter= 8" Inch = 200mm

Overall Height= 250mm

Overall Height Inch= 9.843"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Cast Iron and Polyurethane

Tire= Cast Iron and Polyurethane

Bearing type= Roller bearing

Load Capacity= 1190 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Mounting VXB005C200CPUB2 is the Low cost solution of making a project to move around by pushing or pulling. And rolling on wheel that has 200mm diameter/7.874" inch. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 250mm = 9.843" inch. Mounted via a Top Plate that has the size of 115mm x 100mm x 6mm and the holes distance of 72mm x 85mm. Low drag was achieved by a Cast Iron and Polyurethane core on a Cast Iron and Polyurethane tire spinning freely with a Roller bearing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 1190 lb with a Swivel and Upper Brake type. Environment temperature range is -40 to 180 F. Buy our VXB005C200CPUB2, we wish all the best.
