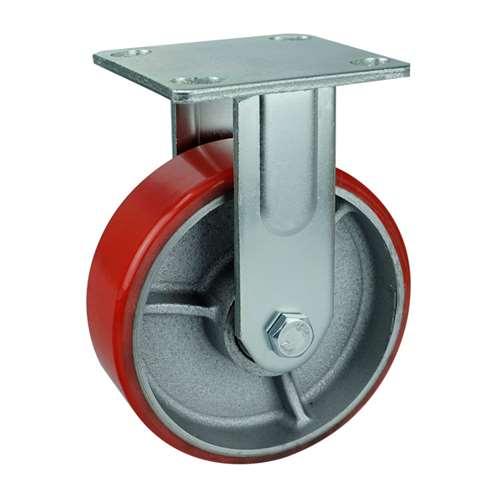

8" Heavy Duty Caster Wheel 1190 Lbs Fixed Cast Iron - PU - Top Plate Mount

8" Inch Caster Wheel 1190 pounds Fixed Cast Iron and Polyurethane Top Plate

VXB005C200CPUF

Heavy Duty

Wheel Diameter= 200mm

Wheel Width= 50mm

Wheel Diameter= 8" Inch = 200mm

Overall Height= 250mm

Overall Height Inch= 9.843"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Cast Iron and Polyurethane

Tire= Cast Iron and Polyurethane

Bearing type= Roller bearing

Load Capacity= 1190 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB005C200CPUF. Diameter size of the caster wheel has a metric standard 200mm which is equal to 7.874" inch with imperial units. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 250mm/9.843" inch. Mounted via a Top Plate that has the size of 115mm x 100mm x 6mm and the holes distance of 72mm x 85mm. Low drag was achieved by a Cast Iron and Polyurethane core on a Cast Iron and Polyurethane tire spinning freely with a Roller bearing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 1190 lb with a Fixed type. Environment temperature range is -40 to 180 F. Buy the VXB005C200CPUF now, just add the quantity to basket and click on Checkout.
