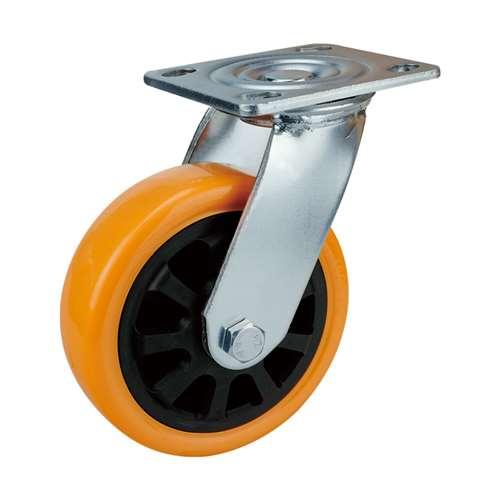

8" Heavy Duty Caster Wheel 661 Lbs - PU - Top Plate Mount

8" Inch Caster Wheel 661 pounds Swivel Polyurethane Top Plate

VXB005200HPU

Heavy Duty

Wheel Diameter= 200mm

Wheel Width= 50mm

Wheel Diameter= 8" Inch = 200mm

Overall Height= 240mm

Overall Height Inch= 9.449"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polyurethane

Tire= Polyurethane

Bearing type= Double ball beaing

Load Capacity= 661 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Utilizing VXB005200HPU makes it feasible to pull and push items instead of transport And rolling on wheel that has 200mm diameter/7.874" inch. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 240mm/9.449" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. Low drag was achieved by a Polyurethane core on a Polyurethane tire spinning freely with a Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 661 lb with a Swivel type. The caster temperature range = -40 to 180 F. Buy our VXB005200HPU, we wish all the best.
