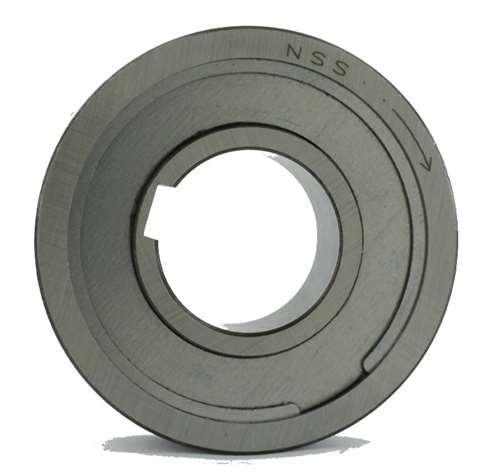

AS20 One-Way Backstop Freewheel Clutch - 20x47x14mm

AS20 One-Way Clutch Bearing
✨ 20x47x14mm - Backstop Freewheel - Same as NSS20

The AS20 one-way clutch provides directional control for applications like conveyors, motors, and machinery. Same size as a 6204 ball bearing, it requires separate bearing support. Ideal for setups where rotation must only occur in one direction.

🟢 Size: 20mm ID x 47mm OD x 14mm Width
🟢 Type: One-Way Clutch (Sprag / Freewheel)
🟢 Applications: Overrunning, Indexing, Backstopping
🟢 Torque: 32 TKN Nominal / 80 TKN Max
🟢 Inner Race Overrun Speed: 2,200 RPM
🟢 Outer Race Overrun Speed: 3,300 RPM
🟢 Requires: Bearing support (fits with 6204 ball bearing)
🟢 Quantity: 1 Clutch

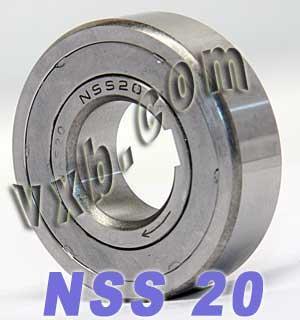

🟢 Equivalent: NSS20

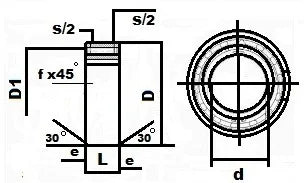

Dimensions Table (mm):
