AS60 One-Way 60x110x22 Bearing Support Required Backstop Clutch

AS60 One-Way Clutch Sprag Freewheel
✨ 60mm x 110mm x 22mm - Overrunning, Indexing & Backstopping - One Clutch

The AS60 is a non-bearing supported one-way clutch designed for applications where rotation is permitted in only one direction. Ideal for use in conveyor systems, mining equipment, and industrial machines, it functions as an overrunning, indexing, or backstopping unit. Requires a supporting 6205 bearing for proper installation.

🟢 Size: 60mm inner x 110mm outer x 22mm width
🟢 Type: One-way clutch (sprag freewheel)
🟢 Application: Overrunning, indexing, and backstopping
🟢 Torque capacity: 406 TKN
🟢 Resistance torque: 26 TKN
🟢 Max overrun speed (inner race): 700 RPM
🟢 Max overrun speed (outer race): 1,100 RPM
🟢 Support required: Use with 6205 bearing
🟢 Quantity: 1 clutch

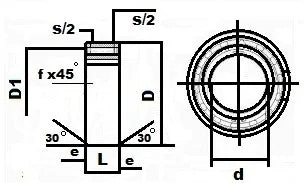

🟢 Dimension details (mm):
- d: 60 - D: 110 - D1: 100 - L: 22 - s: 2.5 - e: 1.2 - f: 1.5
