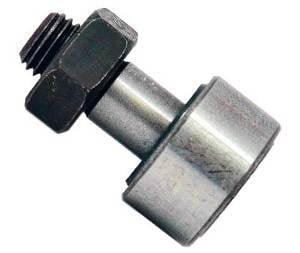

CF10K 26mm Cam Follower Needle Roller Bearing

CF10K Cam Follower
✨ Needle Roller Bearing - 10mm x 26mm x 36mm

The CF10K cam follower is a needle roller bearing with a stud-type design, made for guide tracks, conveyors, and automation systems. Its threaded stud (M10x1.25) offers secure mounting while handling heavy radial loads in tight spots.

🟢 Type: Cam Follower Needle Roller Bearing
🟢 Stud Thread: M10 x 1.25

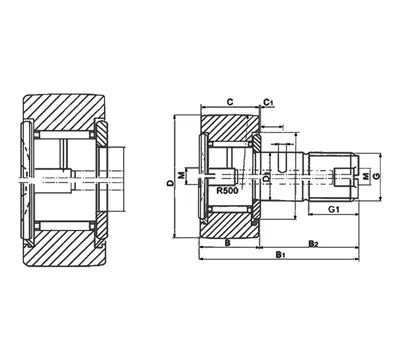

🟢 Inner Diameter (d1): 10mm
🟢 Outer Diameter (D): 26mm
🟢 Overall Length (B1): 36.2mm
🟢 Roller Width (B): 13.2mm
🟢 Stud Shoulder Width (B2): 23mm
🟢 Stud Length (G1): 12mm
🟢 Roller Face Radius (C): 12mm
🟢 Groove Width (C1): 0.6mm
🟢 Quantity: 1 Bearing
🟢 Dynamic Load Rating: 5,394 N
🟢 Static Load Rating: 6,865 N

☑️ Equivalent to: MCFR-26-X
