F1244 Flanged Bearing - Full Complement - 3/8" x 1-3/8" x 1/2"

F1244 Flanged Ball Bearing - Full Complement

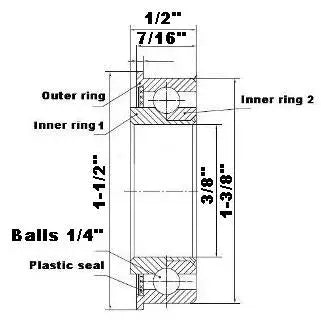

✨ 3/8" ID - 1-3/8" OD - 1/2" Width - No Cage

The F1244 is a heavy-duty flanged ball bearing featuring a full complement of 1/4" balls with no cage, providing maximum load capacity in compact assemblies. With its integrated flange, it’s ideal for axial positioning in applications like conveyors, robotics, and custom machinery.

🟢 Bore diameter: 3/8" (0.375")
🟢 Outer diameter: 1-3/8" (1.375")
🟢 Width: 1/2" (0.5")
🟢 Outer ring width: 7/16"
🟢 Flange diameter (G): 1-1/2"
🟢 Ball size: 1/4"
🟢 Design: Full complement (no cage)
🟢 Type: Flanged ball bearing
🟢 Quantity: 1 bearing
