F2864 Flanged Bearing - Full Complement - 7/8" x 2" x 5/8"

F2864 Flanged Ball Bearing - Full Complement
✨ 7/8" x 2" x 5/8" - No Cage, Heavy-Duty Load Capacity

The F2864 is a full complement flanged ball bearing, meaning it contains the maximum number of 1/4" balls without a cage for increased load handling. Designed for heavy-duty use in low-speed or oscillating applications, this bearing features a 7/8" bore and a 2" outer diameter, with a flange for easy positioning.

🟢 Bore diameter: 7/8" (0.875")
🟢 Outer diameter: 2"
🟢 Inner ring width: 5/8"
🟢 Outer ring width: 9/16"
🟢 Flange diameter (G): 2-1/8"
🟢 Full complement design - no cage, higher load capacity
🟢 Ball size: 1/4"
🟢 Quantity: 1 bearing

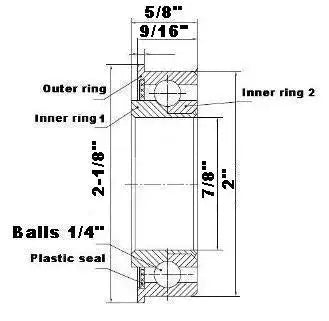

📏 Dimensions Table (Inches):
