One Left Hand Female Rod End PHS4L Works with 4mm Shafts, inner diameter is 4mm, the internal thread size is M4x0.7, Cross-reference part numbers:
- PHS4L Bearings
- Rod Ends Heim Joints Bearing
- Quantity: 1 Bearing
- Dynamic load Capacity: 170 KGF
- Static load Capacity: 190 KGF

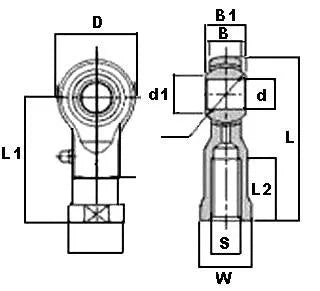

| Dimensions (mm) |
|---|
| d |
Thread
S |
D |
B |
B1 |
d1 |
L |
L1 |
L2 |
| 4 |
M4x0.7 |
14 |
5.25 |
7 |
6.5 |
31 |
24 |
8 |
|
