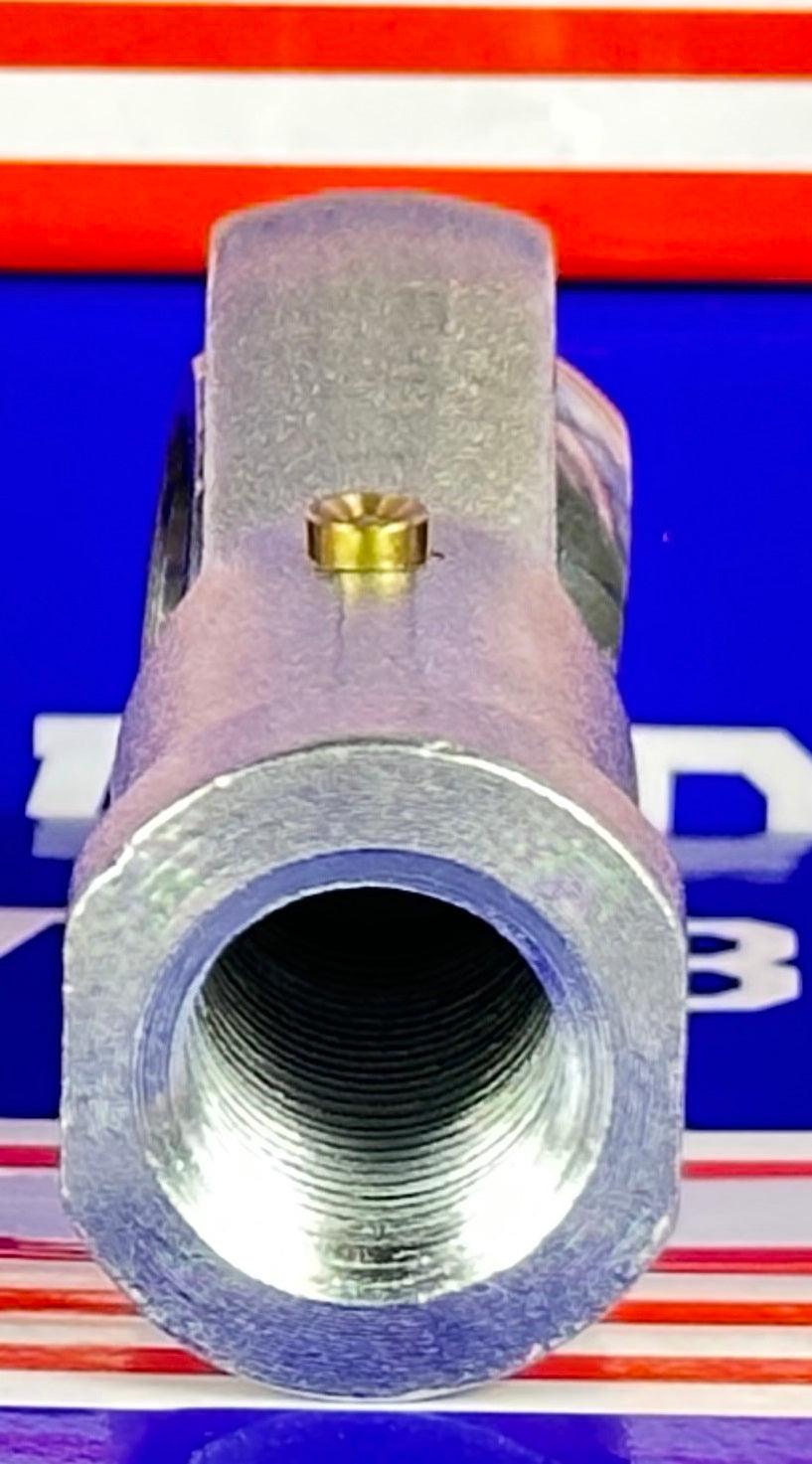

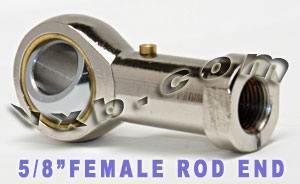

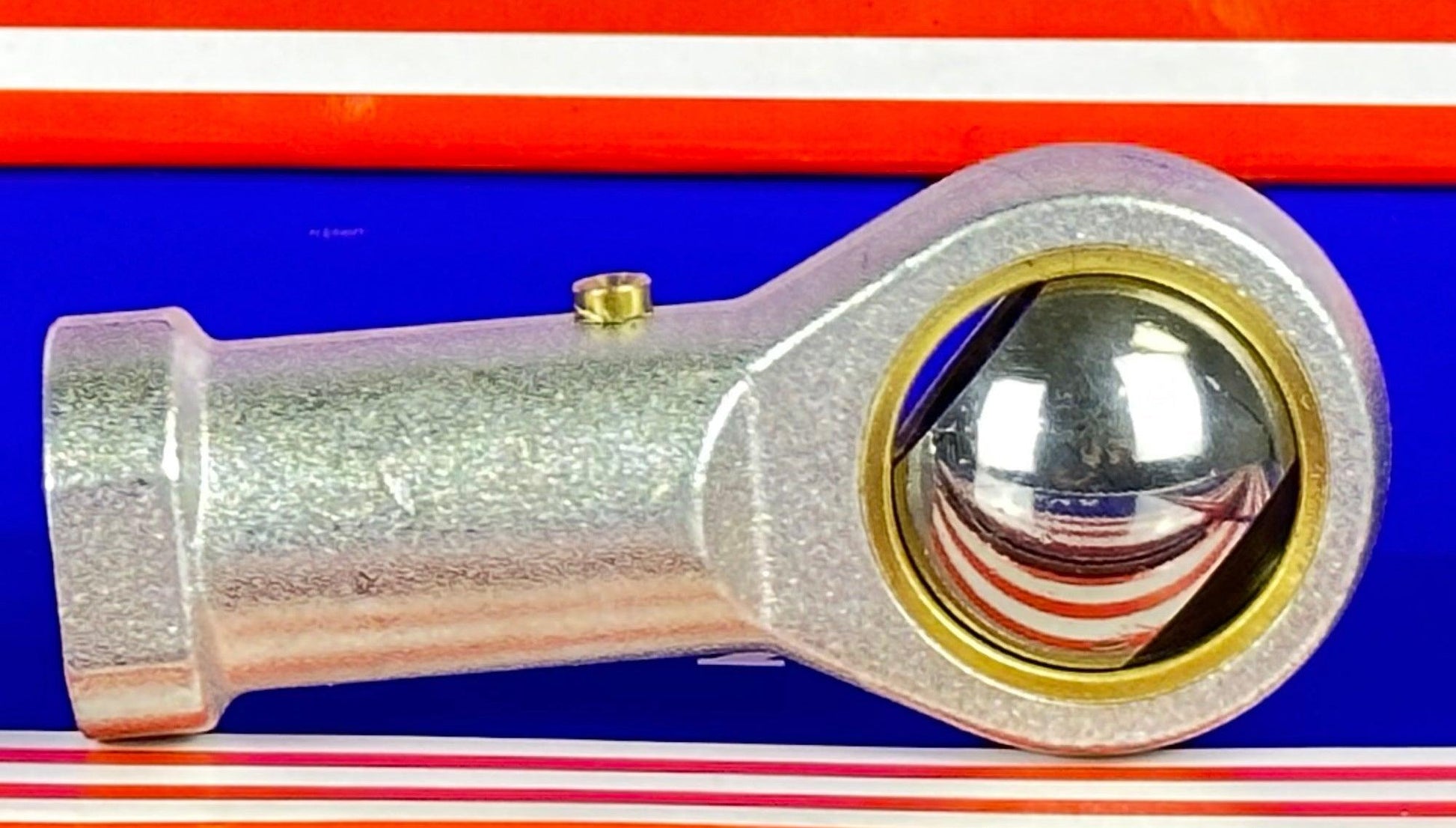

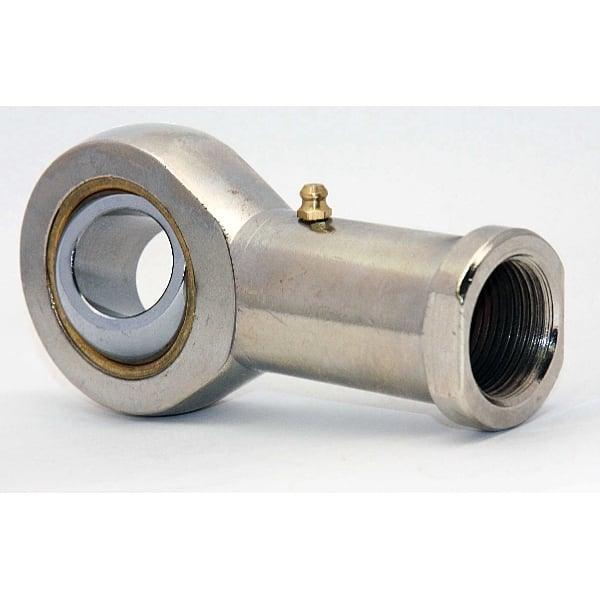

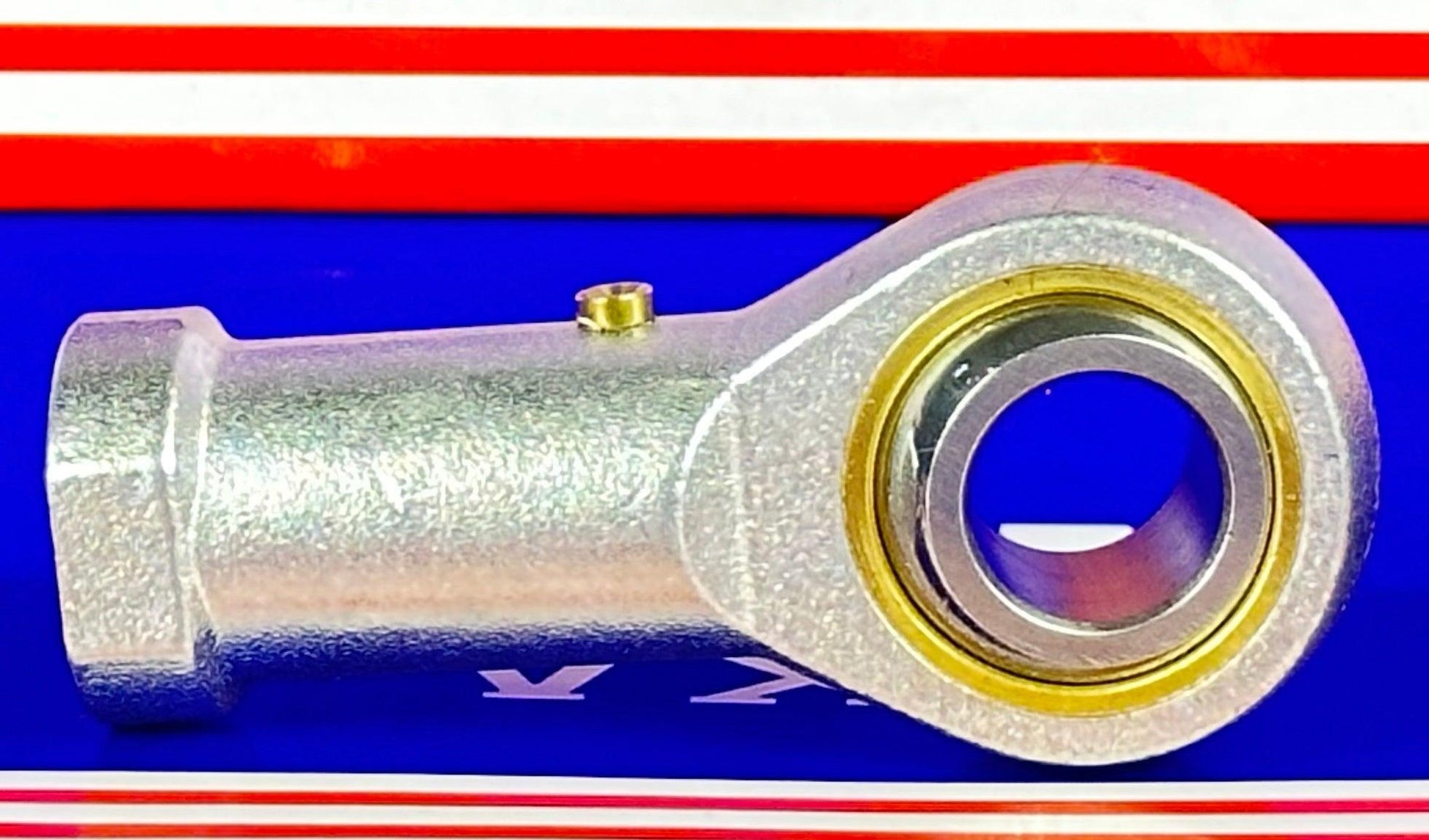

Female Rod End PHSB10L, Left hand Works with 5/8" Shafts, they are marked PHSB10L with 5/8" inner diameter, the internal thread size is 5/8", Cross-reference part numbers:
- PHSB10L Bearing
- Female Rod Ends
- Thread Size: 5/8" UNF
- Quantity: 1 Bearing
- Dynamic Load Rating: 20 KN
- Static Load Rating: 21 KN
|

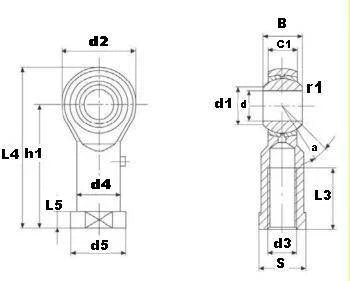

Dimensions (Inches)
|
a |
| d |
B |
r1s |
C1 |
d1 |
d2 |
d3
UNF-2B |
h1 |
L3 |
L4 |
L5 |
d4 |
d5 |
S |
| 5/8" |
3/4" |
0.5mm |
9/16" |
21.31mm |
1-1/2" |
5/8-18 |
2-1/2" |
1-1/2" |
3-1/4" |
5/16" |
7/8" |
1" |
7/8" |
11 |
|
