Female Rod End PHSB16 1" Right Hand Bearing Joint

PHSB16 Female Rod End
✨ Right Hand Thread - Fits 1" Shaft

The PHSB16 is a right-hand female rod end designed for heavy-duty linkage and control systems. With a 1" inner diameter and 1-1/4" UNF internal thread, it's ideal for use in steering linkages, actuators, and industrial equipment requiring pivot motion under load.

🟢 Pack size: 1 rod end
🟢 Thread type: Right-hand UNF 1-1/4"
🟢 Bore size: 1"
🟢 Ball diameter: 1-7/8"
🟢 Dynamic load rating: 60 kN
🟢 Static load rating: 101 kN
🟢 Material: Steel housing with precision ball

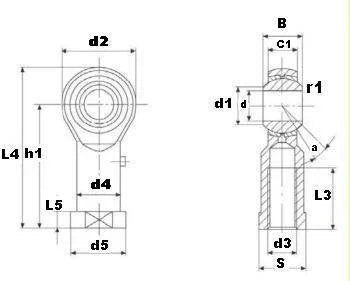

Dimensions (Inches)
