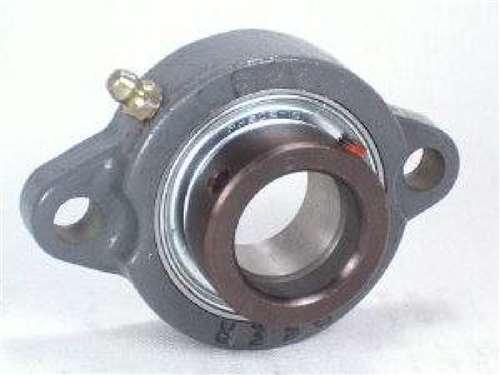

FHLF202-9 Flange Bearing - 2-Bolt Narrow Style
✨ 9/16" ID - Light Duty Eccentric Lock, Cast Housing
The FHLF202-9 is a light-duty flange mount bearing unit featuring a 2-bolt narrow-body design and a 9/16" inner diameter. Constructed with a high-grade cast iron housing and a pre-lubricated ball bearing insert, it’s ideal for compact installations where space is limited. The unit includes an eccentric locking collar for quick shaft attachment and non-relubricatable, sealed bearing operation.
🟢 Type: Light-duty flange mount bearing (2-bolt)
🟢 Shaft diameter: 9/16"
🟢 Locking method: Eccentric locking collar
🟢 Housing material: Cast iron
🟢 Seal type: RST full metal shroud seals (non-relubricatable)
🟢 Bolt size: 1/4"
🟢 Bearing number: FH202-9
🟢 Housing number: LF-203-H
🟢 Quantity: 1 assembled unit

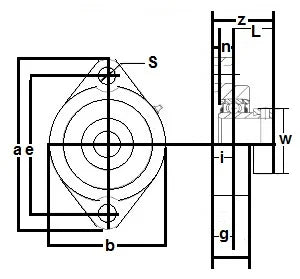

Unit Dimensions (inches):
| a | e | i | g | l | s | b | Z | L | n | W |
|---|---|---|---|---|---|---|---|---|---|---|
| 3-3/16" | 2-1/2" | 3/8" | 3/8" | 23/32" | 5/16" | 2-7/32" | 1-1/4" | 1-1/8" | 1/4" | 1-1/8" |
