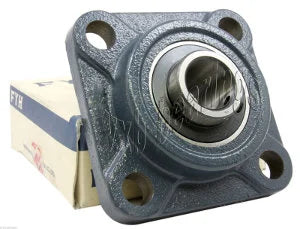

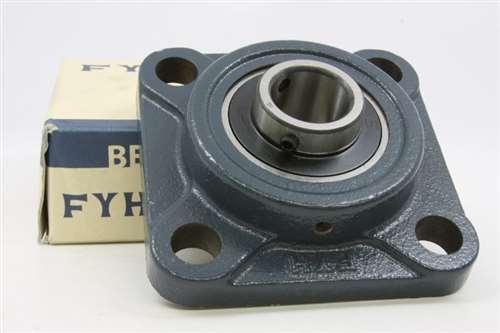

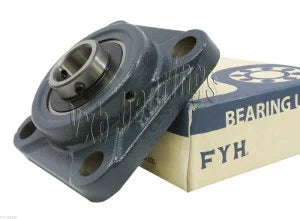

UCF211-32 FYH Flange Bearing Unit
✨ 2" Four-Bolt Square Flange - Set Screw Lock, Heavy-Duty Mount
The UCF211-32 is a square flanged bearing unit from FYH with a 2" inner diameter and secure four-bolt mounting. Designed for rotating applications requiring accurate alignment, this heavy-duty unit includes a cylindrical bore with set screws and a solid cast iron housing for rugged performance.
🟢 Pack size: 1 bearing unit
🟢 Shaft diameter: 2 inches
🟢 Mount style: Four-bolt square flange
🟢 Locking type: Set screws
🟢 Housing: Cast iron
🟢 Bearing number: UC211-32
🟢 Bolt size: 5/8 inch
🟢 Dynamic load rating (Cr): 43.4 kN
🟢 Static load rating (Cor): 29.4 kN
🟢 Ideal for: Rotating drums, rollers, or precise mounted applications
Dimensional Overview (inches):
| d | L | A | J | N | A1 | A2 | A0 | B | S |
|---|---|---|---|---|---|---|---|---|---|
| 2" | 6.375" | 1.6875" | 5.125" | 0.75" | 0.718" | 0.984" | 2.3125" | 2.188" | 0.875" |
