FYH Bearing UCFX14-44 2-3/4" Square Flanged Mounted Bearing
FYH Bearing UCFX14-44 2-3/4" Square Flanged Mounted Bearing
Couldn't load pickup availability

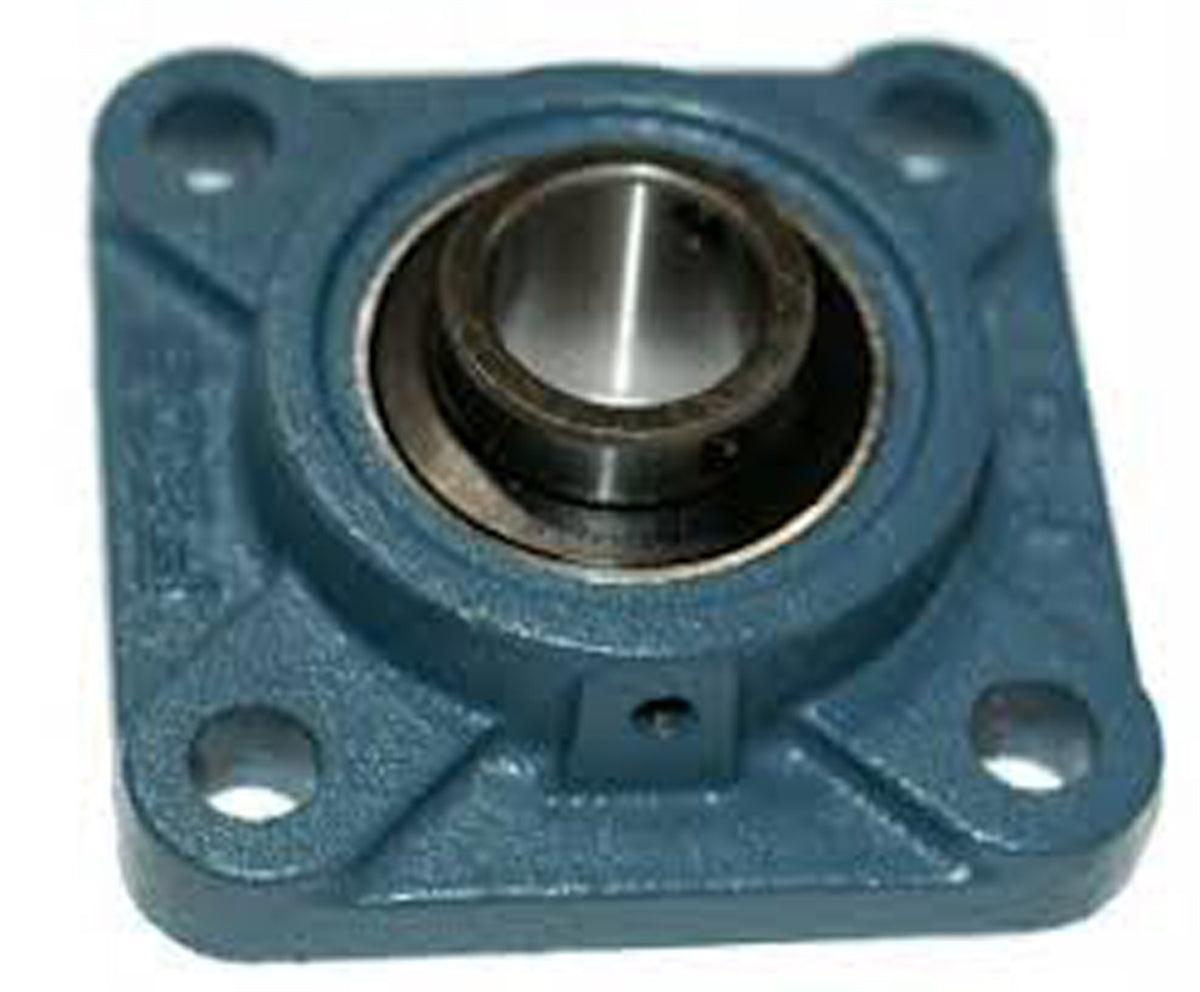

UCFX14-44 FYH Flanged Bearing Unit
✨ 2-3/4" ID - Square 4-Bolt Flange, Heavy Duty
The UCFX14-44 from FYH is a heavy-duty 4-bolt flanged bearing unit with a cylindrical bore and set screws for secure shaft attachment. It features a round cartridge back for precise mounting and alignment - ideal for rotating drums, rollers, and machinery requiring exact positioning.
🟢 Type: Four-bolt square flanged mounted bearing
🟢 Inner diameter (d): 2-3/4"
🟢 Bore style: Cylindrical with set screws
🟢 Housing type: Square flange with round cartridge back
🟢 Bolt hole size: 7/8"
🟢 Basic dynamic load rating (Cr): 104,000 N
🟢 Basic static load rating (Cor): 68,200 N
🟢 Bearing number: UCX14-44
🟢 Brand: FYH
🟢 Quantity: 1 bearing

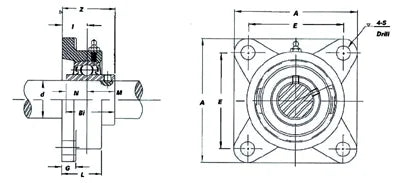

📐 Dimensions (in inches):
| Feature | Size |
|---|---|
| Shaft Bore (d) | 2-3/4" |
| Overall Length (L) | 7-3/4" |
| Flange Thickness (A) | 2-3/8" |
| Bolt Hole Center (J) | 5-63/64" |
| Bolt Hole Diameter (N) | 29/32" |
| Bolt Size | 7/8" |
| A1 | 7/8" |
| A2 | 1-29/64" |
| A0 | 3-7/32" |
| B | 3.063" |
| S | 1.331" |
