FYH Bearing UCP214-44 2-3/4" - Pillow Block Mounted Bearing
FYH Bearing UCP214-44 2-3/4" - Pillow Block Mounted Bearing
Couldn't load pickup availability

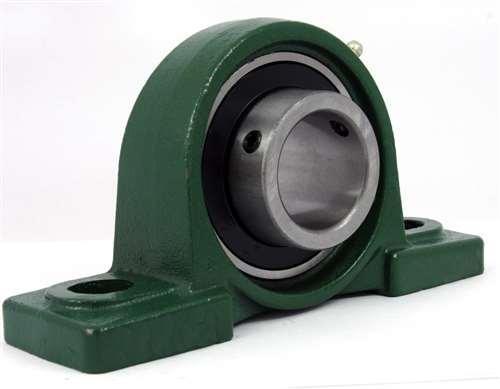

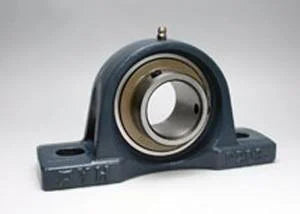

UCP214-44 FYH Pillow Block Bearing - 2-3/4" Shaft
✨ Heavy-Duty Mounted Unit - Set Screw Lock - Cast Iron Housing
The UCP214-44 from FYH is a rugged pillow block bearing designed to support 2-3/4" shafts in industrial applications. With a reinforced cast iron base, set screw locking, and high load capacity, it’s a perfect choice for conveyors, material handling, and mechanical systems exposed to vibration and heavy use. This listing includes one complete bearing unit.
🟢 Bearing type: Pillow block mounted unit
🟢 Model: UCP214-44
🟢 Shaft diameter: 2-3/4" (2.75")
🟢 Bore type: Cylindrical with set screws
🟢 Bearing number: UC214-44
🟢 Housing: Heavy-duty cast iron
🟢 Bolt size: 3/4" inch
🟢 Dynamic load rating (Cr): 62.2 kN
🟢 Static load rating (Cor): 44.1 kN
🟢 Quantity: 1 bearing unit

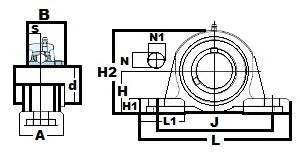

Dimensions (inches):
| d | H | L | A | J | N | N1 | H1 | H2 | L1 | B | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2-3/4" | 3-1/8" | 10-15/32" | 2-27/32" | 8-9/32" | 31/32" | 1-3/16" | 1-3/32" | 6-5/32" | 3-1/16" | 2-15/16" | 3/16" |
