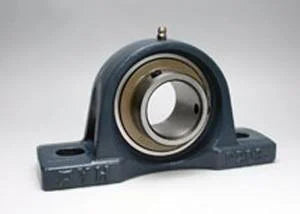

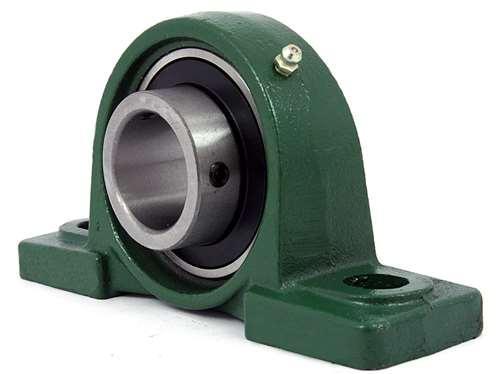

FYH Bearing UCP324 120mm Pillow Block Mounted Bearing
FYH Bearing UCP324 120mm Pillow Block Mounted Bearing
Regular price
$1,941.30 USD
Regular price
$2,157.00 USD
Sale price
$1,941.30 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
UCP324 FYH Pillow Block Bearing
✨ 120mm Shaft - Cast Housing - Set Screw Locking
The UCP324 from FYH is a robust pillow block bearing unit featuring a 120mm cylindrical bore and a strong cast housing built to endure heavy radial and axial loads. Designed with set screws for secure shaft mounting, it's perfect for industrial applications exposed to high vibration, shock, or directional force.
🟢 Type: Mounted ball bearing unit
🟢 Shaft Diameter: 120mm
🟢 Housing Type: Pillow block with reinforced base rib
🟢 Mounting Style: Cylindrical bore with set screws
🟢 Bearing Number: UC324
🟢 Bolt Size: M33
🟢 Static Load Rating (Cor): 185 kN
🟢 Dynamic Load Rating (Cr): 207 kN
🟢 Pack Size: 1 bearing unit

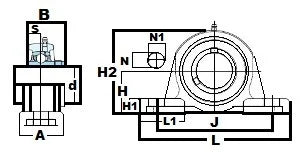

Dimensions Table (mm):
| Spec | Value |
|---|---|
| d (Shaft Diameter) | 120mm |
| H (Overall Height) | 160 |
| L (Overall Length) | 570 |
| A (Base Width) | 140 |
| J (Bolt Hole Distance) | 450 |
| N (Bolt Hole Diameter) | 40 |
| N1 (Slot Width) | 55 |
| H1 (Center Height) | 50 |
| H2 (Base Height) | 316 |
| L1 (Housing Width) | 160 |
| S (Set Screw Spacing) | 51 |
