FYH Bearing UCPX17-55 3 7/16 Pillow Block Mounted Bearing
FYH Bearing UCPX17-55 3 7/16 Pillow Block Mounted Bearing
Couldn't load pickup availability

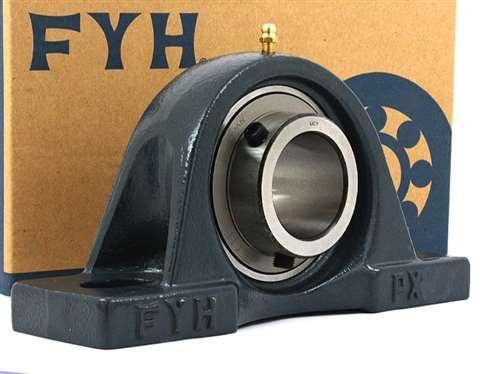

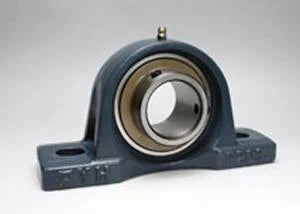

UCPX17-55 FYH Pillow Block Bearing
✨ 3-7/16" ID - Heavy-Duty Cast Housing, Set Screw Lock
The UCPX17-55 is a heavy-duty mounted pillow block bearing with a 3-7/16" inner diameter and set screw locking. Designed for large shafts and high-load applications, this bearing features a robust cast housing that can take on shock, vibration, and extreme force from any direction - ideal for industrial conveyors, crushers, and agricultural machinery.
🟢 Pack size: One bearing
🟢 Type: Mounted pillow block bearing (UCPX series)
🟢 Shaft diameter: 3-7/16"
🟢 Mounting: Cylindrical bore with set screws
🟢 Bolt size: 7/8" inch
🟢 Bearing number: UCX17-55
🟢 Dynamic load rating (Cr): 96.1 kN
🟢 Static load rating (Cor): 71.5 kN
🟢 Rugged cast housing for extreme environments

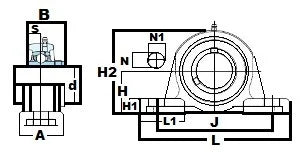

🟢 Mounting Dimensions (inch):
| d (Bore) | H | L | A | J | N | N1 | H1 | H2 | L1 | B | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3-7/16" | 4" | 15" | 4" | 11-1/8" | 1-1/16" | 2-3/8" | 1-11/32" | 7-7/8" | 4-9/16" | 3.78" | 1-9/16" |
