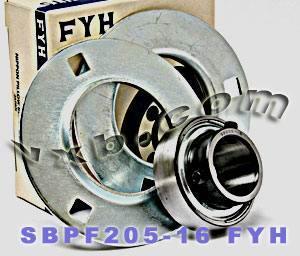

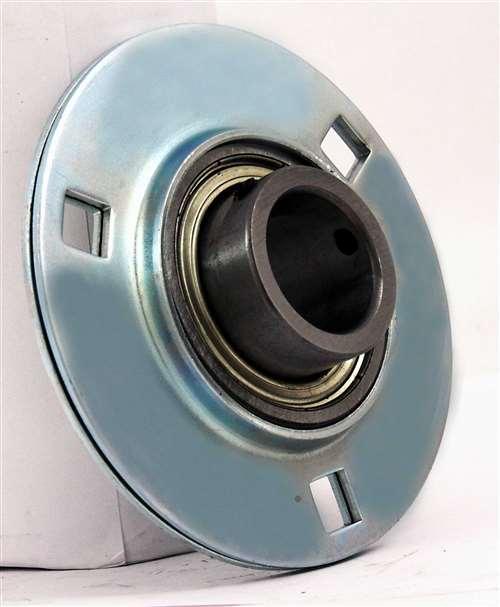

FYH SBPF205-16 1" Stamped round 3-Bolt Flanged Mounted Bearing
FYH SBPF205-16 1" Stamped round 3-Bolt Flanged Mounted Bearing
Couldn't load pickup availability
SBPF205-16 Flange Bearing - 1" Shaft Diameter
✨ Round 3-Bolt Flange - Stamped Steel Plate - Set Screw Locking
The SBPF205-16 is a light-duty stamped steel flange bearing unit with a round 3-bolt design, ideal for compact or budget-conscious installations. Featuring a 1" inner diameter and cylindrical bore with set screw locking, this unit is a great fit for agricultural tools, conveyor systems, and light machinery requiring reliable shaft support.
🟢 Type: 3-bolt stamped steel flange bearing unit
🟢 Shaft diameter: 1"
🟢 Locking method: Set screw locking
🟢 Housing: Stamped steel plate
🟢 Bearing insert: SB205-16
🟢 Bolt size: 5/16"
🟢 Quantity: 1 bearing
🟢 Load ratings:
- Dynamic (Cr): 14 kN
- Static (Cor): 7.85 kN

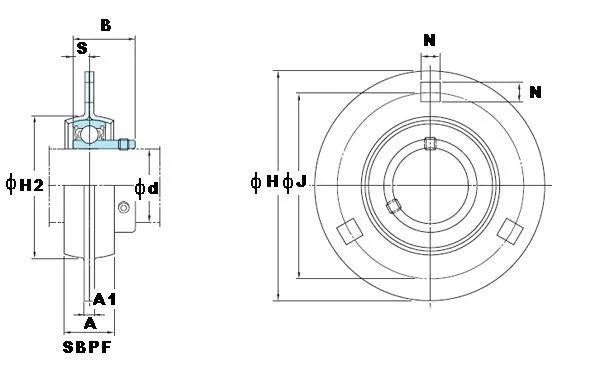

Dimensions (inches):
| d | H | A | A1 | J | N | H2 | S | B |
|---|---|---|---|---|---|---|---|---|
| 1" | 3-3/4" | 23/32" | 5/32" | 2-63/64" | 23/64" | 2-3/8" | 0.295" | 1.063" |
