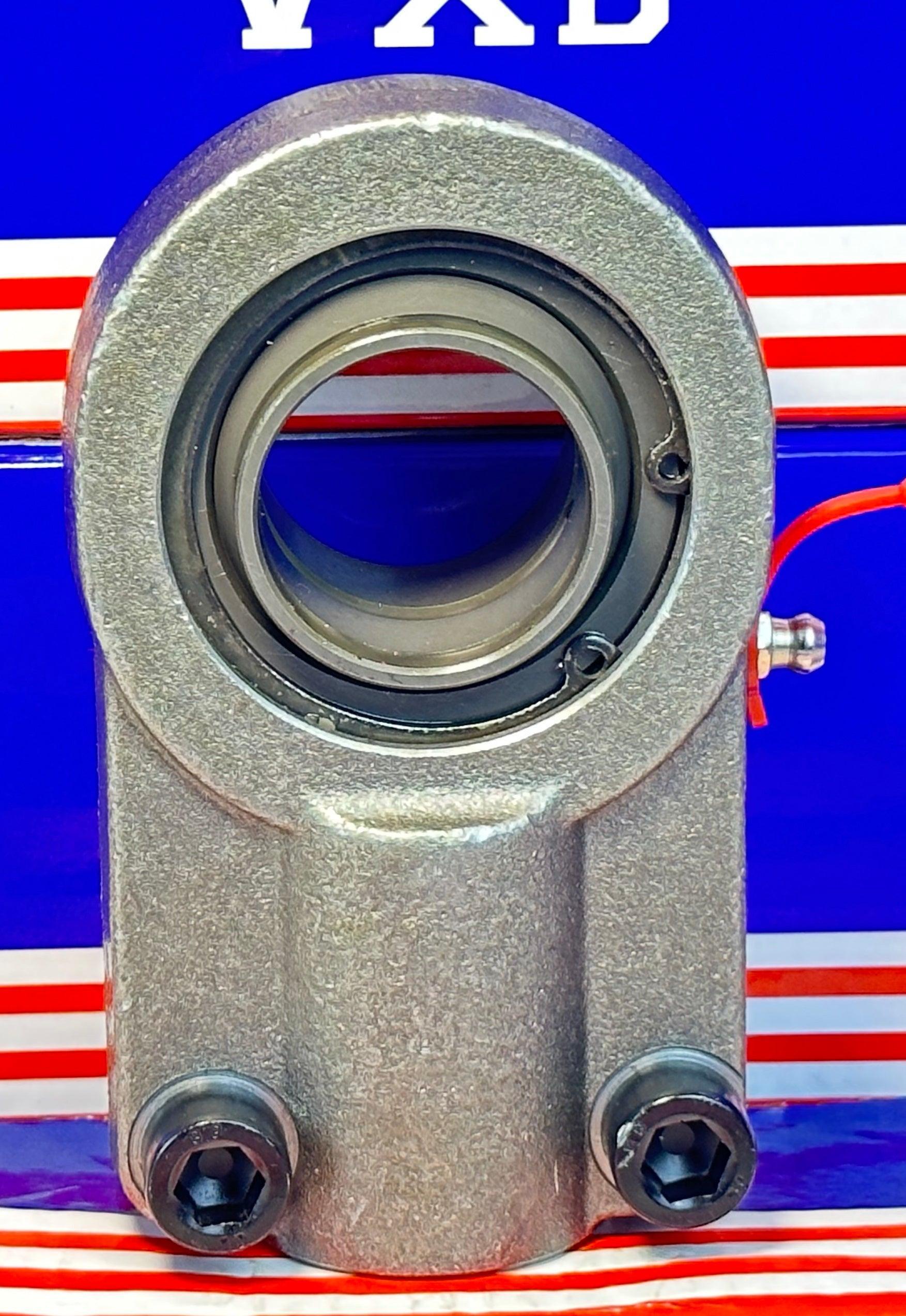

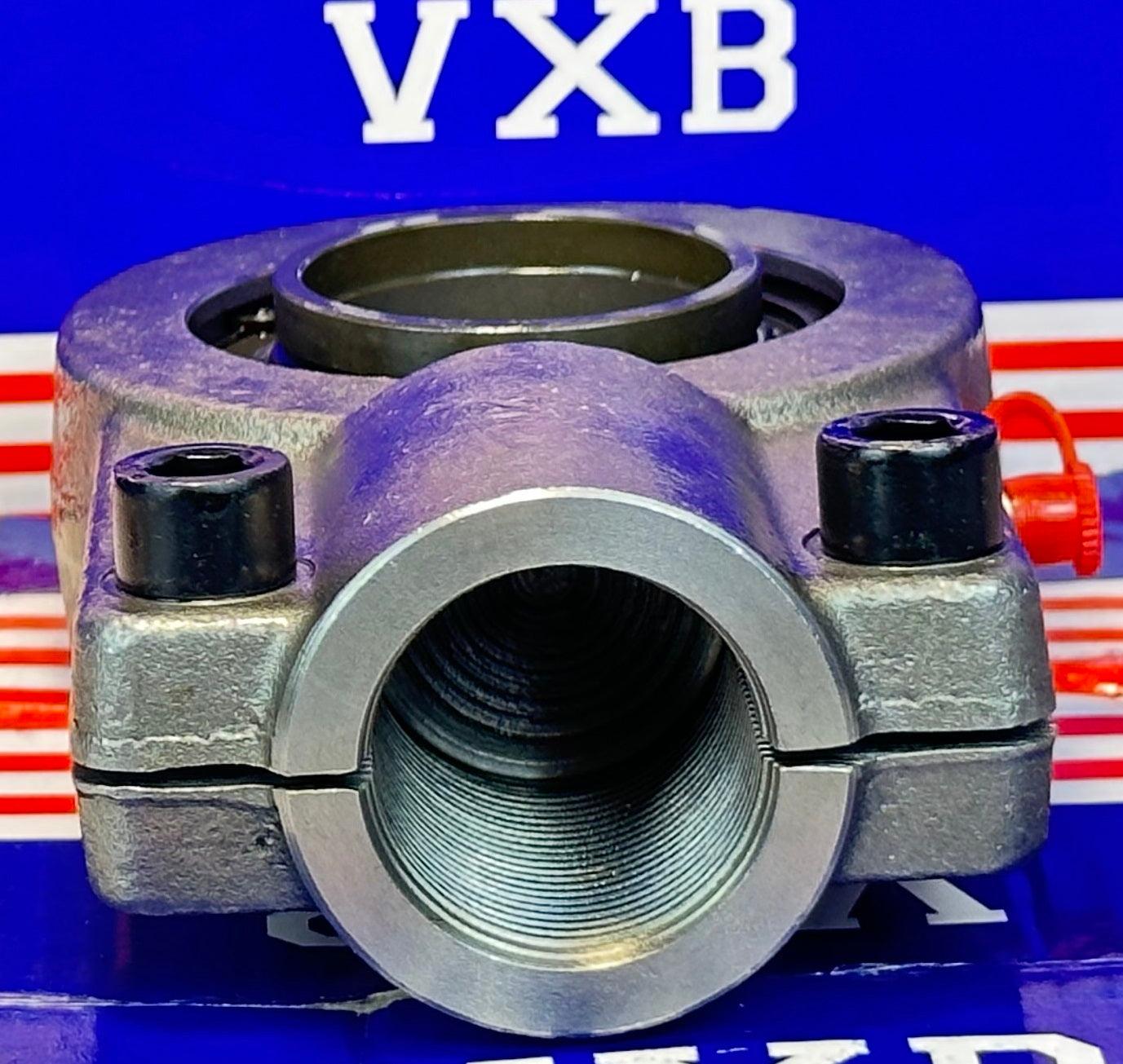

GIHN-K12LO Spherical Rod End - M12x1.25 Female Thread - Steel-on-Steel

GIHN-K12LO Spherical Rod End Bearing
✨ 12mm ID - M12x1.25 Female Thread - Steel-on-Steel - 1 Unit

The GIHN-K12LO is a compact, high-strength female rod end bearing designed for 12mm shafts. Featuring steel-on-steel sliding contact surfaces and a fine-threaded M12x1.25 connection, this bearing is ideal for linkages in light industrial machinery, control arms, or compact mechanical systems.

🟢 Inner diameter (bore): 12mm
🟢 Outer diameter: 32mm
🟢 Width: 12mm
🟢 Thread: M12x1.25 (female, 6H tolerance)
🟢 Contact surfaces: Steel/Steel
🟢 Application: Precision linkages, motion systems, light-duty mechanical arms
🟢 Brand: VXB Bearing
🟢 Quantity: 1 rod end

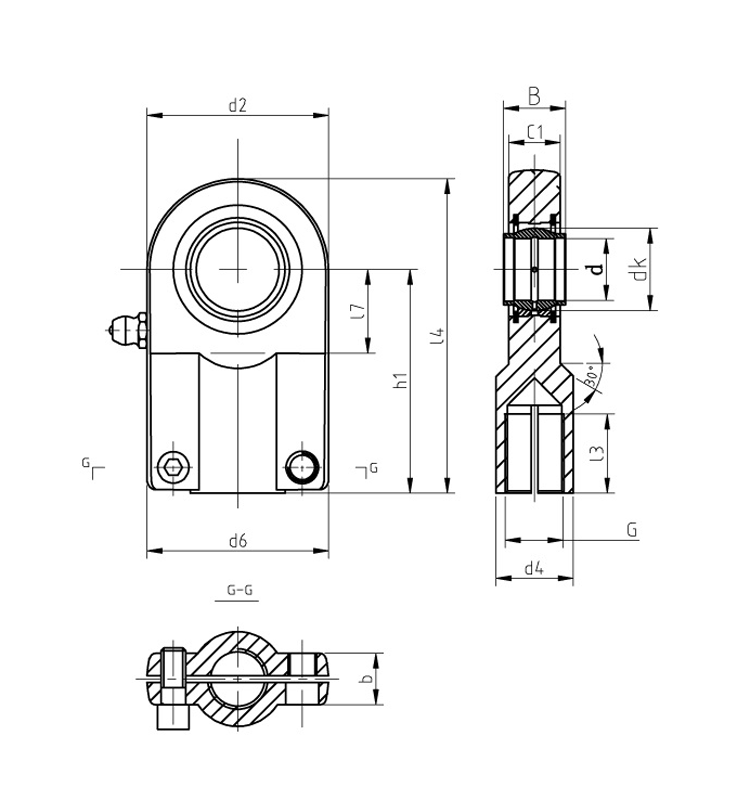

Dimensions Table (mm):
