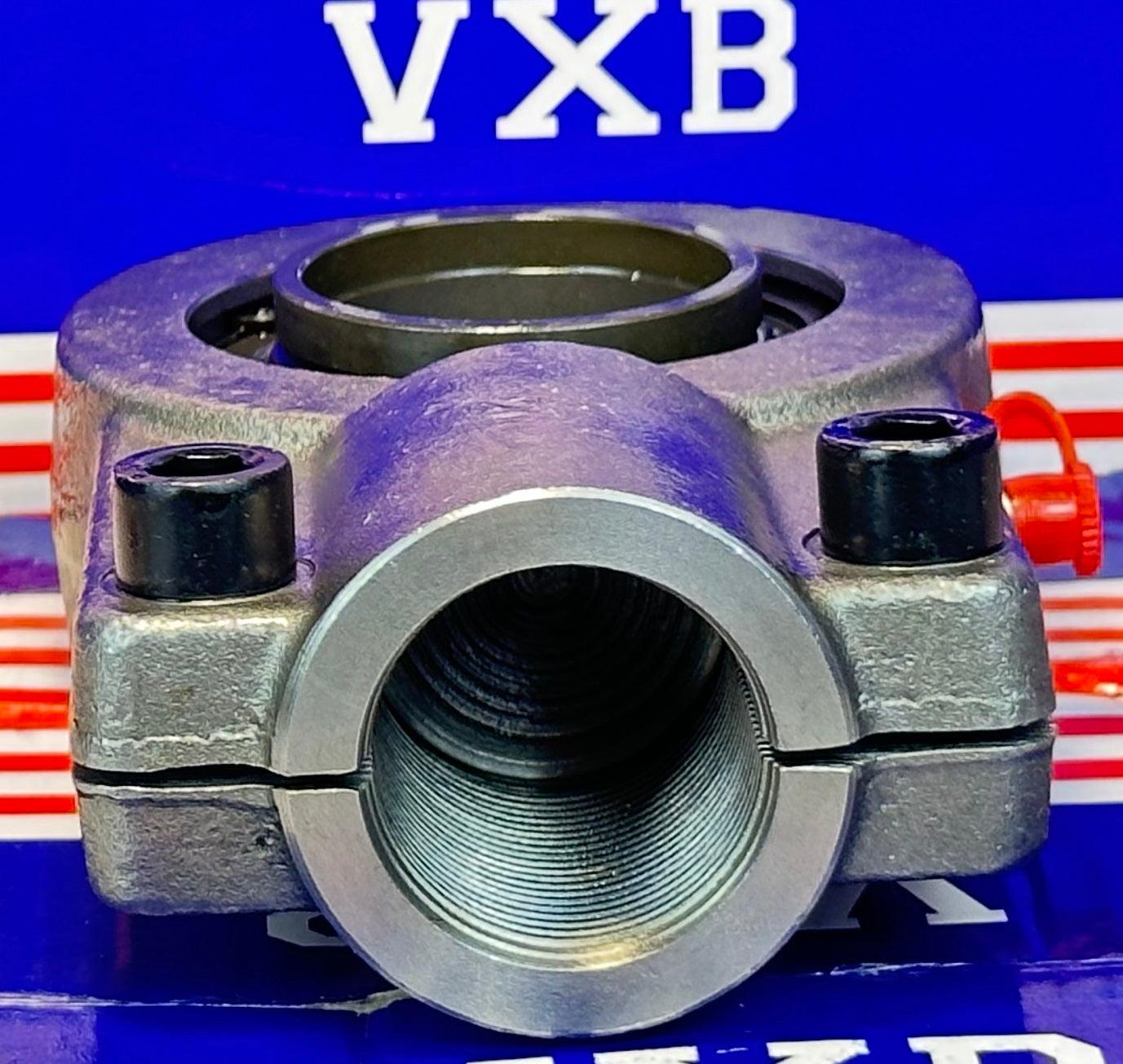

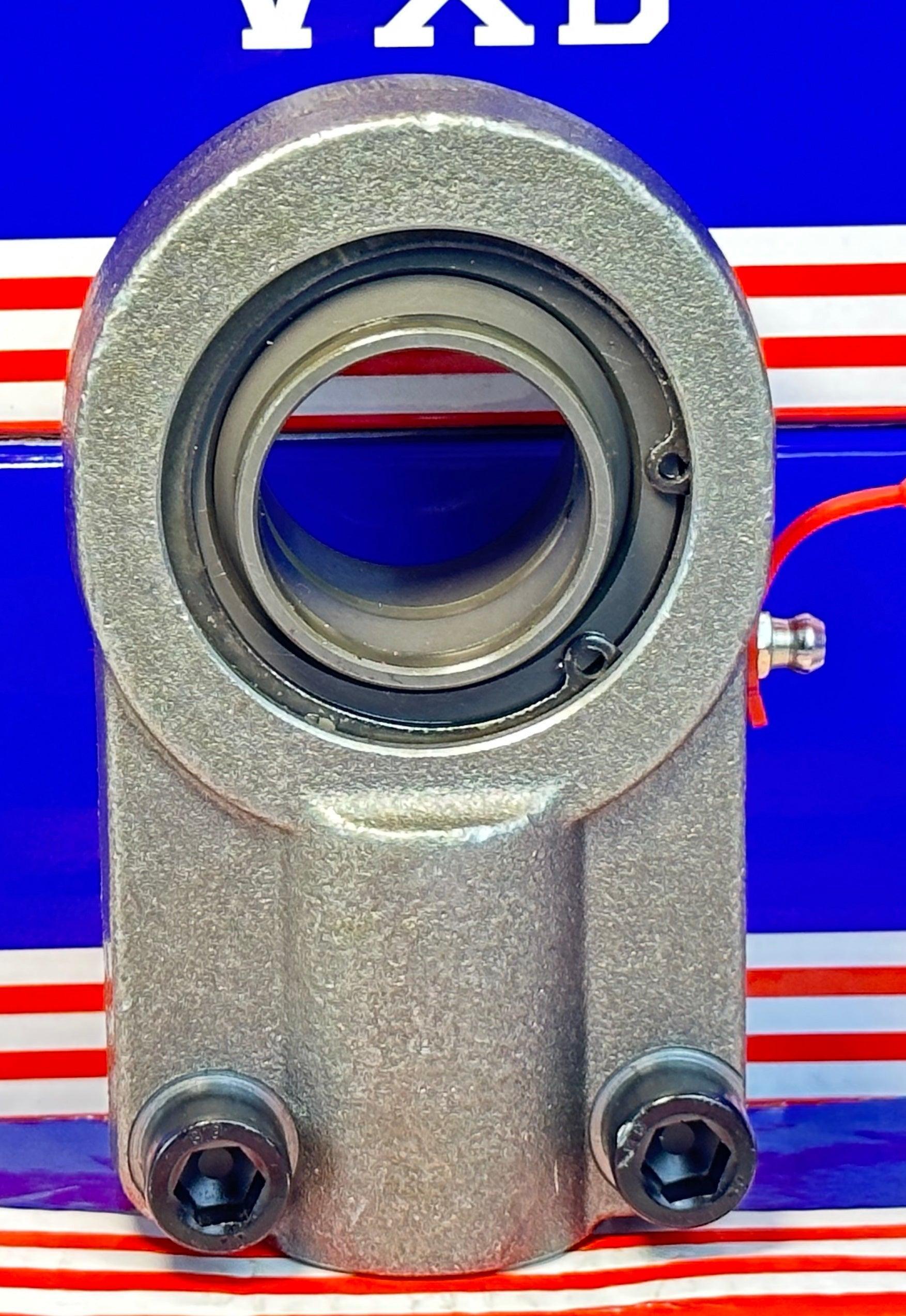

GIHN-K20LO Spherical Rod End - Weld-On Shank - Locking Plain Bearing

GIHN-K20LO Spherical Rod End Bearing
✨ 20mm ID - M16x1.5 Female Thread - Steel-on-Steel - 1 Unit

The GIHN-K20LO is a female-threaded spherical rod end designed for 20mm shafts, featuring steel-on-steel sliding contact surfaces for strength and wear resistance. Ideal for use in hydraulic cylinders, linkage systems, machinery arms, and motion control assemblies.

🟢 Inner diameter (bore): 20mm
🟢 Outer diameter: 47mm
🟢 Width: 20mm
🟢 Thread: M16x1.5 (female, 6H tolerance)
🟢 Contact surfaces: Steel/Steel
🟢 Type: Locking plain bearing with weld-on housing
🟢 Brand: VXB Bearing
🟢 Quantity: 1 rod end

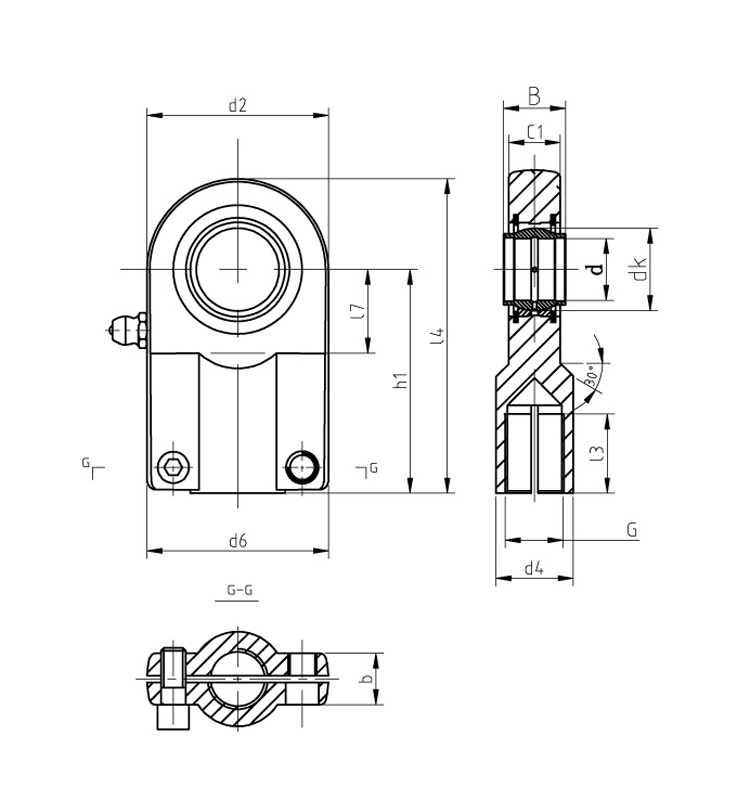

Dimensions Table (mm):
