GIHN-K25LO Spherical Rod End Bearing 25mm ID - M20x1.5 - Weld-On Style
GIHN-K25LO Spherical Rod End Bearing 25mm ID - M20x1.5 - Weld-On Style
Regular price
$53.99 USD
Regular price
$59.99 USD
Sale price
$53.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

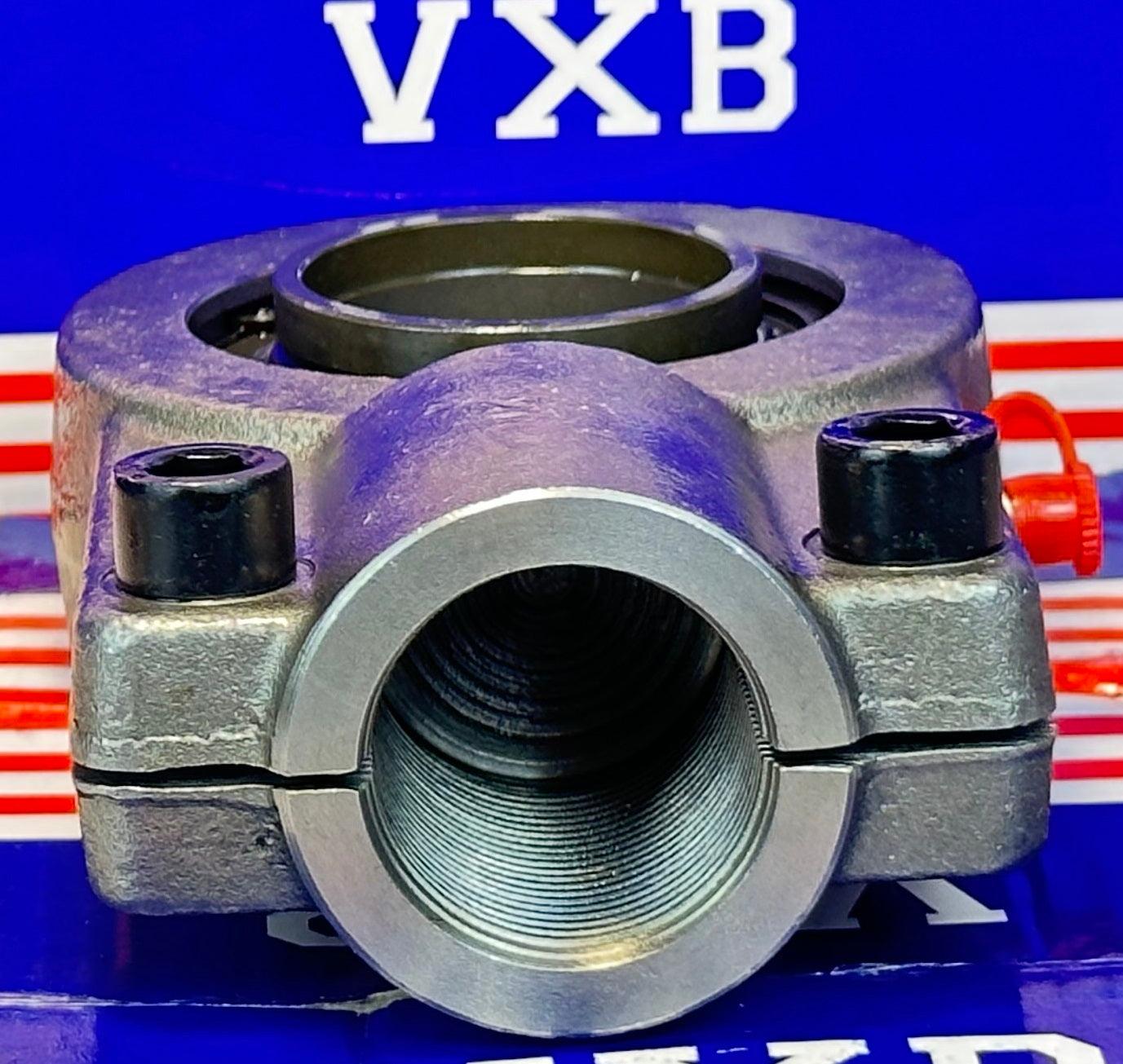

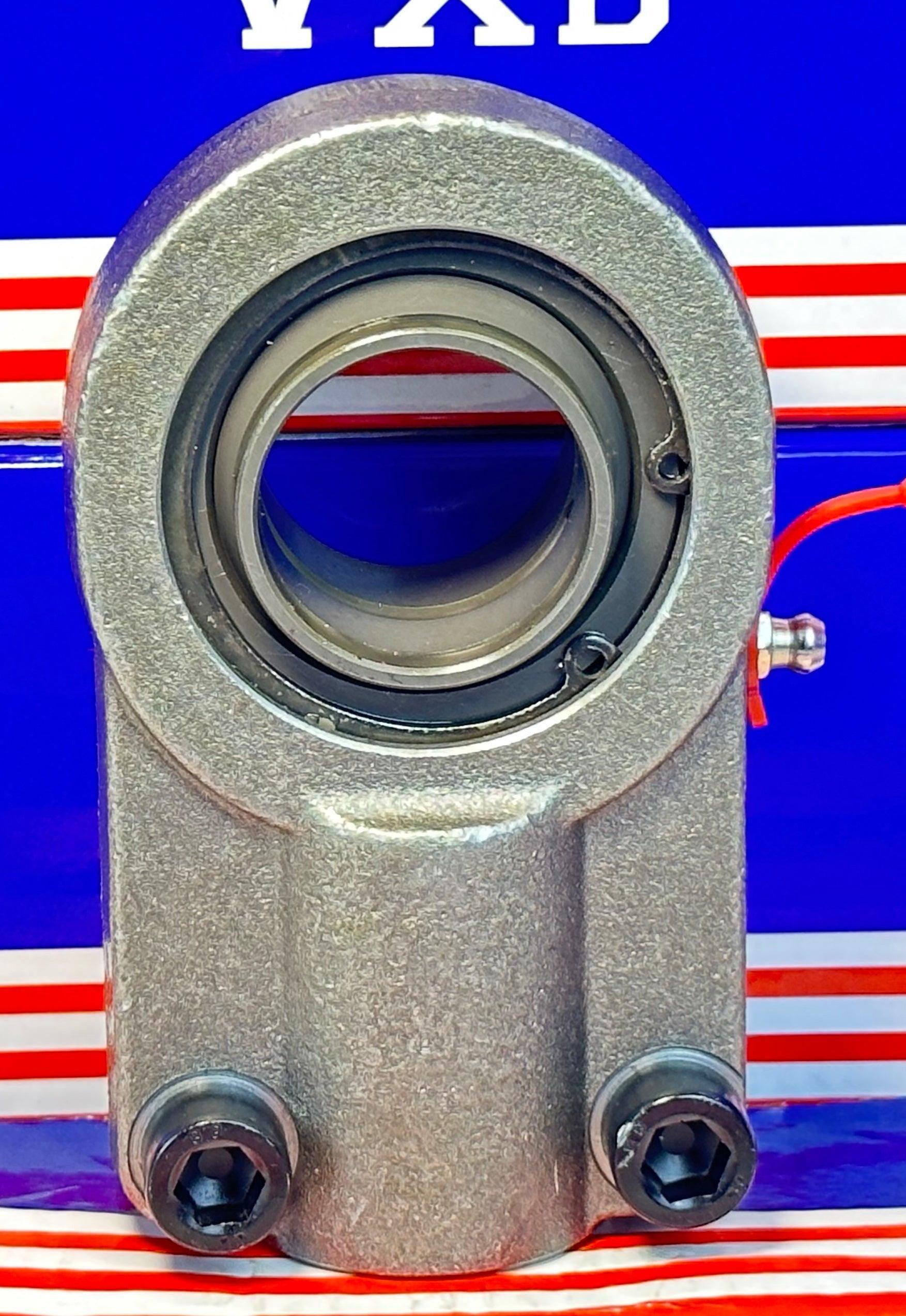

GIHN-K25LO Spherical Rod End Bearing
✨ 25mm ID - M20x1.5 Thread - Weld-On Style - 1 Unit
The GIHN-K25LO is a heavy-duty female spherical rod end designed to handle oscillating motion under high loads. With a 25mm bore and internal M20x1.5 thread, it features steel-on-steel sliding contact surfaces for maximum strength and durability. Ideal for hydraulic cylinders, construction equipment, and industrial linkages.
🟢 Inner diameter (bore): 25mm
🟢 Outer diameter: 58mm
🟢 Width: 25mm
🟢 Thread: M20x1.5 (female, 6H tolerance)
🟢 Contact surface: Steel/Steel
🟢 Type: Locking plain bearing with weld-on rod end
🟢 Brand: VXB Bearing
🟢 Quantity: 1 rod end

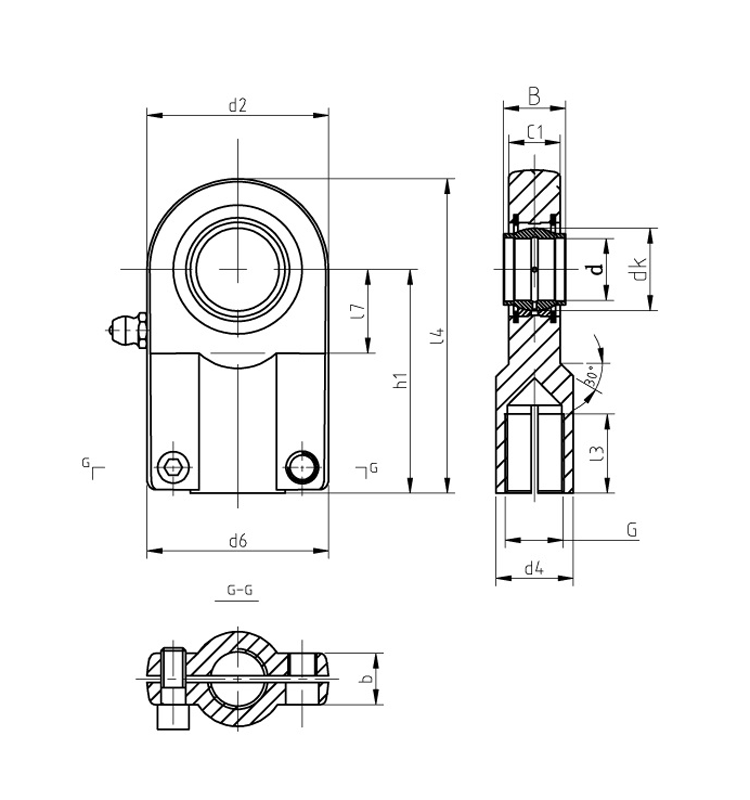

Dimensions Table (mm):
| d (ID) | d2 (OD) | B (Width) | G (Thread) | L4 | b | h1 | d6 | C1 |
|---|---|---|---|---|---|---|---|---|
| 25 | 58 | 25 | M20x1.5 | 96 | 22 | 65 | 54 | 22 |
