GR208-24 Bearing Insert 1-1/2" Mounted
GR208-24 Bearing Insert 1-1/2" Mounted
Couldn't load pickup availability
GR208-24 Bearing Insert
✨ 1 1/2" ID - Grip-It Lock - Black Oxide Plated

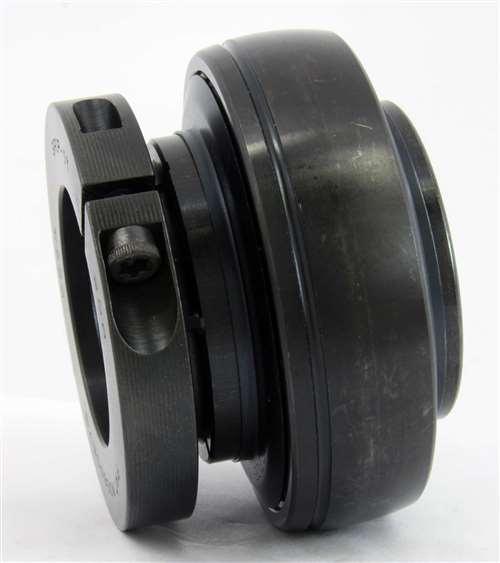

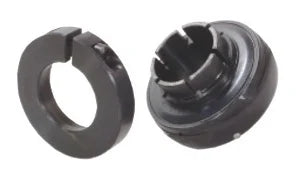

The GR208-24 bearing insert features a wide inner ring with a spherical outer ring and a 360° Grip-It locking collar. Designed for durability, it includes an anti-rotation pin and relubrication groove with an oil hole. Ideal for medium-load industrial applications and replacement insert needs.
👉 Ships within one week. Returns subject to a 15% restocking fee.
🟢 Shaft Diameter: 1 1/2" Inch
🟢 Type: Bearing Insert with Wide Inner Ring
🟢 Locking Mechanism: Grip-It 360° Locking Collar
🟢 Inner/Outer Rings: Black Oxide Plated
🟢 Seal Type: R-Seal Standard
🟢 Dynamic Load Rating: 32,650 N
🟢 Static Load Rating: 16,236 N
🟢 Quantity: 1 Bearing

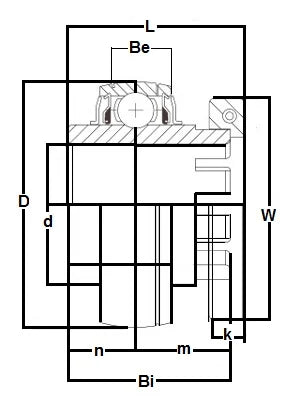

Dimensions (Inches):
| D | L | Bi | Be | r | n | m | W | K | ds (UNF Thread) |
|---|---|---|---|---|---|---|---|---|---|
| 3.15" | 2-7/64" | 1-15/16" | 55/64" | 5/64" | 3/4" | 1-3/16" | 2-11/16" | 7/16" | 10-24 x 3/4 |
