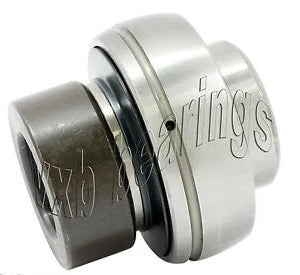

HC213-40 2-1/2" Bearing Insert - Eccentric Collar - Mounted

HC213-40 Bearing Insert with Collar
✨ Eccentric Locking, 2 1/2" ID, Standard Duty Ball Bearing

The HC213-40 is a heavy-duty bearing insert with a 2 1/2" inner diameter and an eccentric locking collar. It’s made for pillow blocks and flange housings in tough machinery environments. It includes a wide inner ring, spherical outer surface, and R-seal for solid protection.

🟢 2 1/2" shaft diameter
🟢 Includes eccentric locking collar for secure fit
🟢 Wide inner ring with spherical outer surface
🟢 Nylon-patched 3A set screw
🟢 Grease groove with oil hole on set screw side
🟢 R-Seal standard seal design
🟢 Dynamic load rating: 61,386 N
🟢 Static load rating: 43,993 N
🟢 Sold as 1 bearing insert

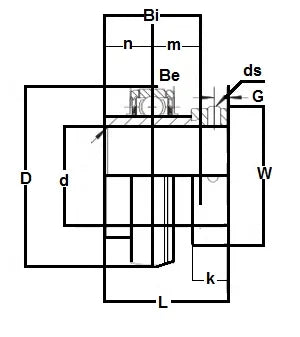

Dimensions (Inches)
