HDBT-1 3/16 CS Drop-in Ball Transfer Unit - 1-3/16" Ball - USA made

HDBT-1 3/16 CS Ball Transfer Unit - Carbon Steel
✨ 1-3/16" Main Ball, Drop-In Flange - Made in USA

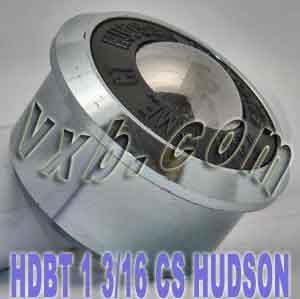

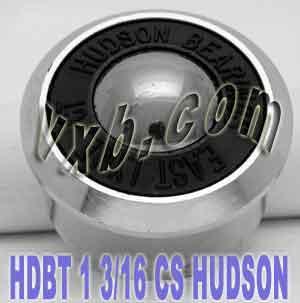

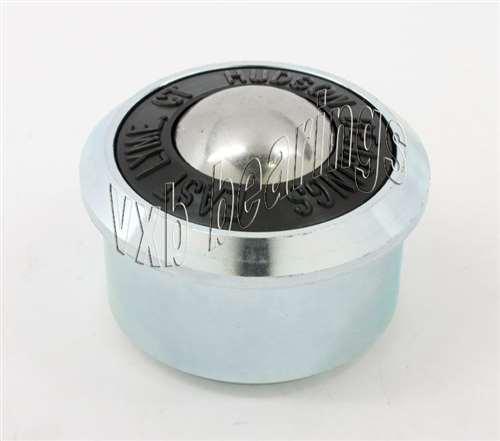

The HDBT-1 3/16 CS is a heavy-duty ball transfer unit featuring a 1-3/16" carbon steel main ball and machined steel housing - engineered for smooth multi-directional movement under heavy loads.

🟢 Item: HDBT-1 3/16 CS
🟢 Type: Ball Transfer Unit
🟢 Main Ball Diameter: 1-3/16"
🟢 Ball Material: Carbon Steel
🟢 Support Balls: 1/8"
🟢 Load Capacity: 500 lbs
🟢 Flange Type: Drop-in, fits 1-3/4" hole
🟢 Housing: Machined, hardened, and plated steel
🟢 Retaining Ring: Solid Plastic
🟢 Quantity: 1 Unit
🟢 Brand: Hudson Bearings
🟢 Made in: USA

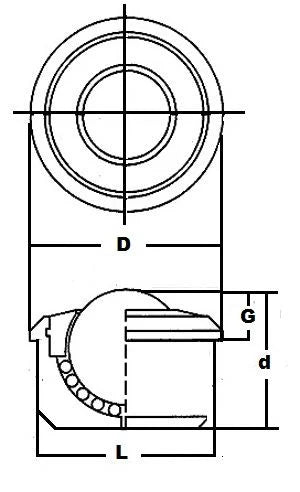

🟢 Dimensions (Inches):
- Height (L): 0.525"
- Base Diameter (D): 2"
- Ball Height (d): 1-7/16"
- Mount Hole Diameter (G): 1-3/4"
