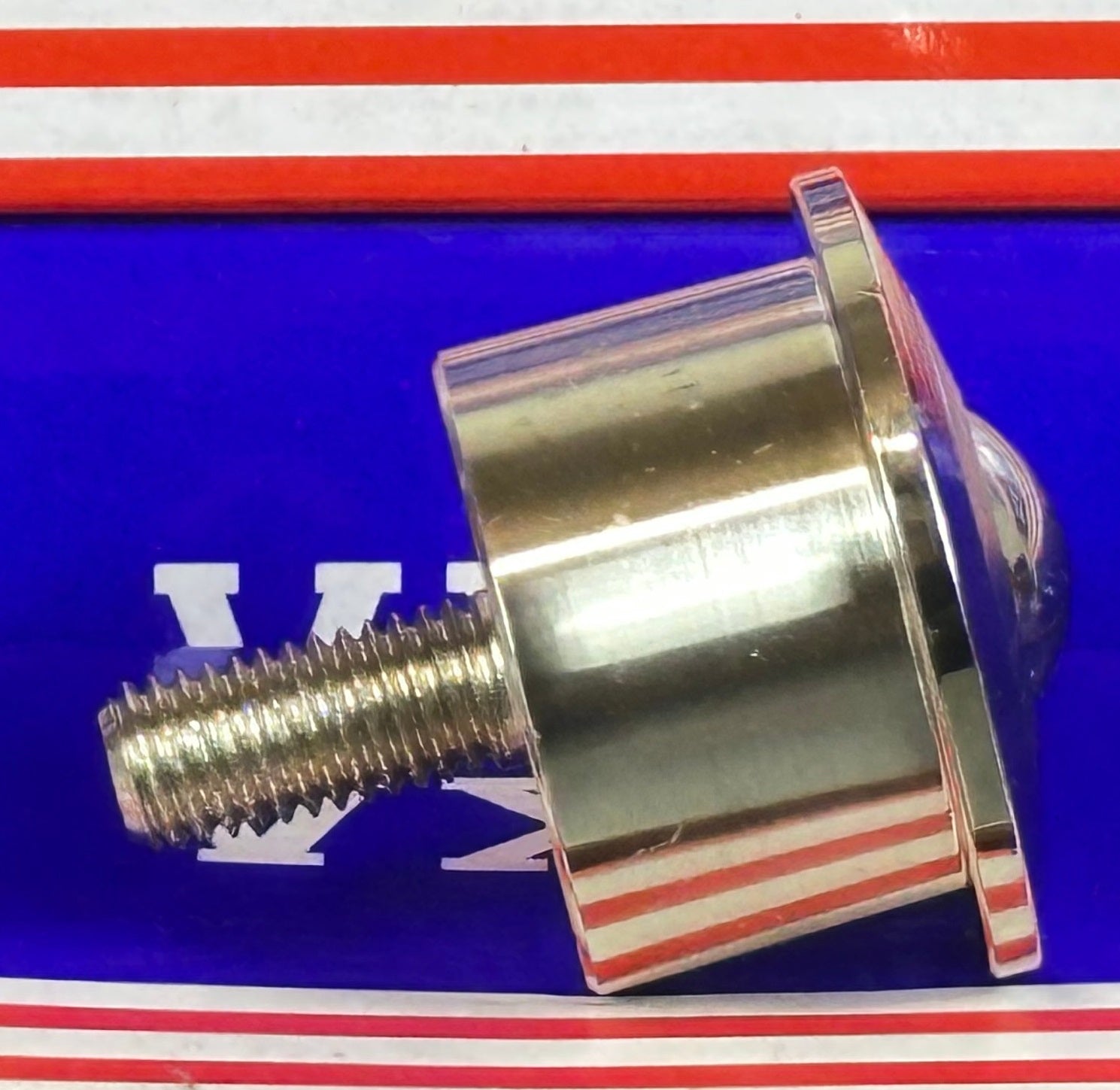

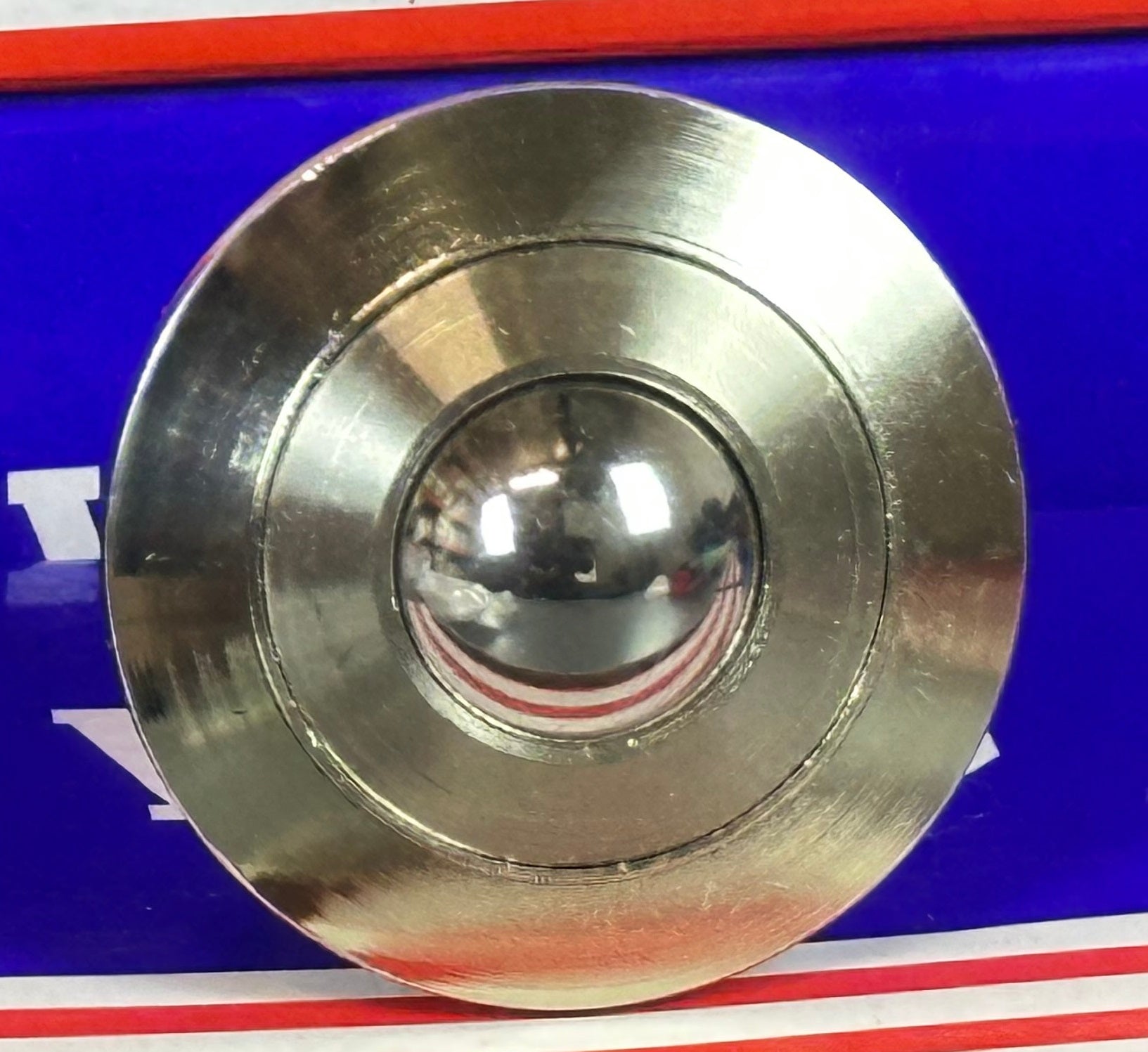

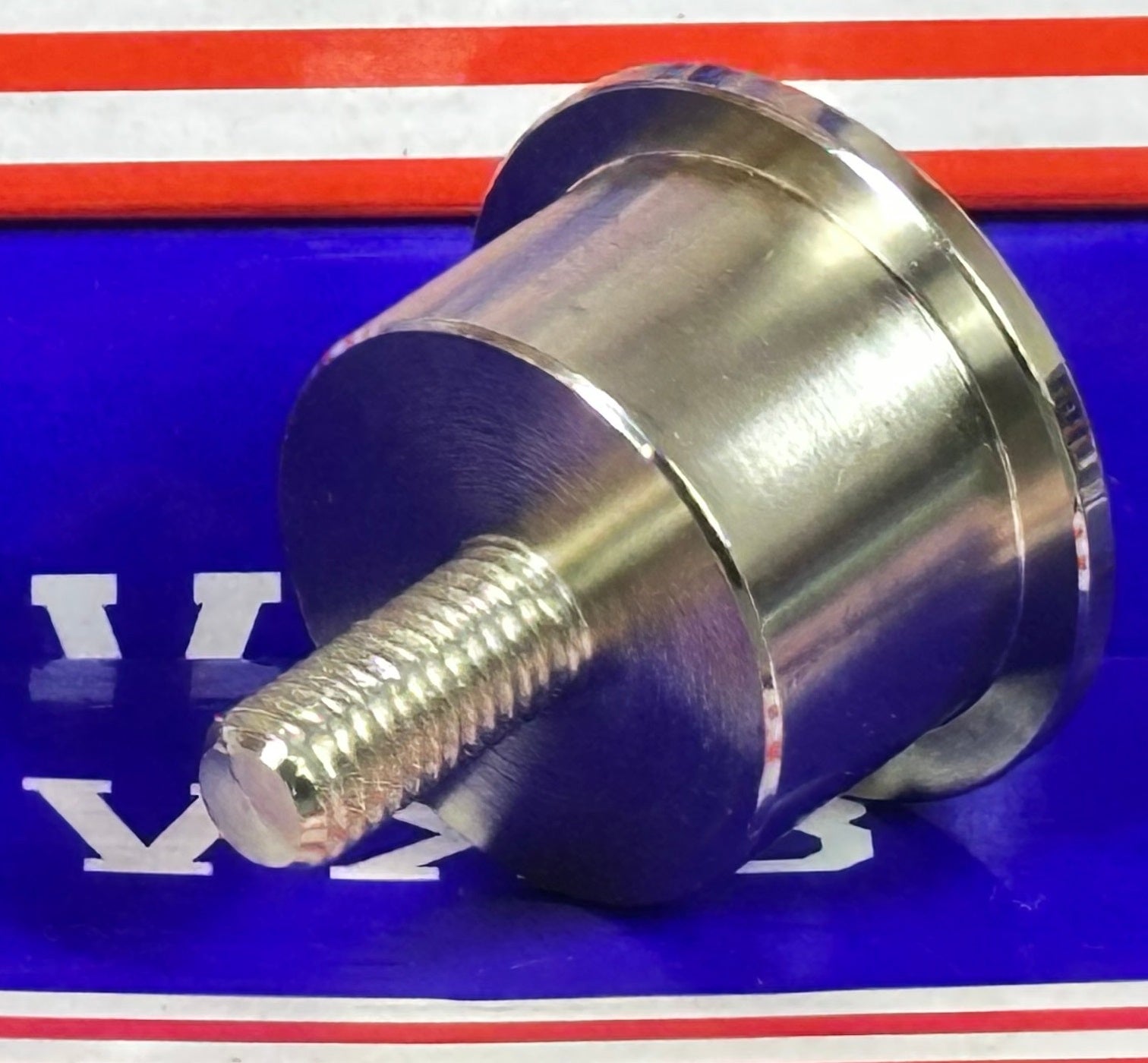

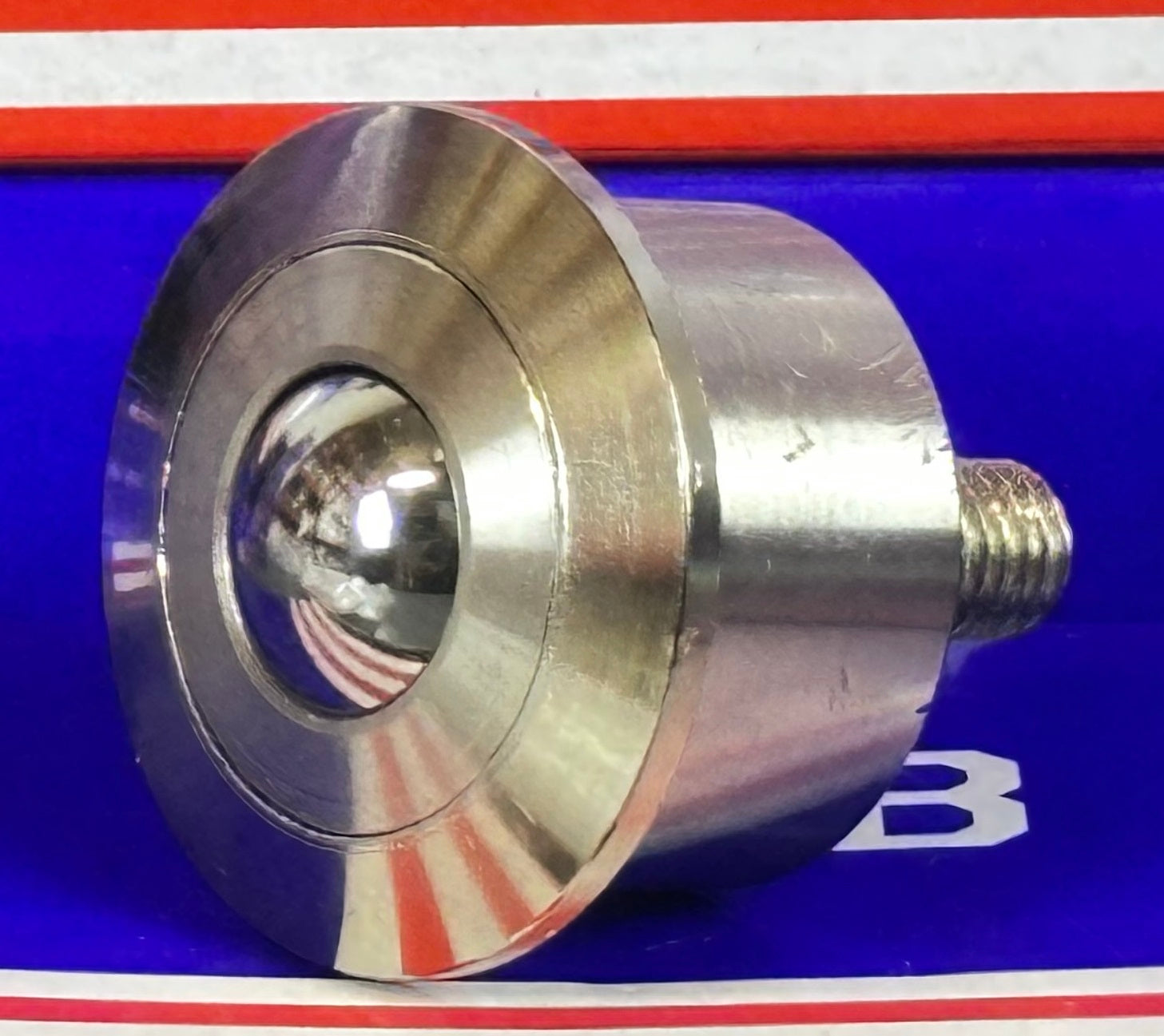

308 lbs Ball Transfer Unit with M10 Threaded Bolt ✨ Heavy Duty Machined Steel - Chrome Plated - One Unit
This heavy-duty ball transfer unit features a solid machined steel body with an integrated M10 threaded bolt for easy mounting. With a 308 lb load capacity, it’s ideal for transfer tables, cargo handling, and conveyor systems that demand durability and smooth multi-directional movement.
🟢 Load capacity: 308 lbs 🟢 Breaking load: 352 lbs 🟢 Main ball diameter: 22.225mm (0.875") 🟢 Housing diameter (D): 36mm (1.41") 🟢 Overall height (H): 31mm (1.22") 🟢 Flange thickness (h1): 4mm (0.157") 🟢 Recess depth (h2): 21.2mm (0.834") 🟢 Mounting length (L): 45mm (1.77") 🟢 Thread length (t): 22mm (0.866") 🟢 Thread size: M10 (0.393" diameter) 🟢 Material: Machined steel with chrome plated ball and cover 🟢 Hardened support cup for long wear life 🟢 Quantity: 1 bearing unit 🟢 Weight: 0.11 lb
