KB16GUU-OP NB Open Bearing 16mm Ball Bushings Linear Motion Bearing

KB16GUU-OP Linear Ball Bushing - Open Type
✨ 16mm ID - NB Japan, Resin Retainer with Side Seals

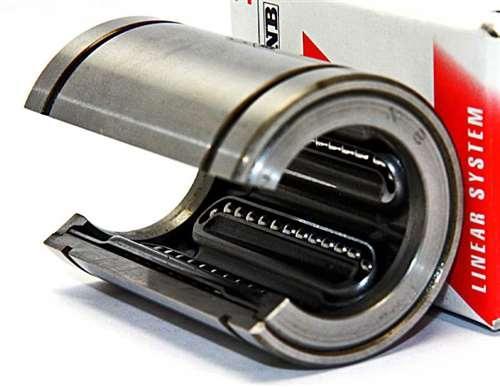

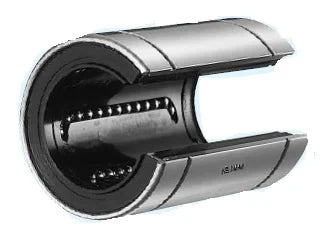

The KB16GUU-OP is an open-type linear motion bearing from NB (Nippon Bearing Systems), made in Japan and designed for 16mm shafts. It features three ball circuits, double side seals, and a resin retainer for quiet operation. Its open style allows direct contact with supported shafts for use in preloaded linear guide systems.

🟢 Shaft diameter: 16mm
🟢 Open-type bearing for use with supported shafts
🟢 Sealed on both sides to block dust
🟢 Resin retainer for smooth and quiet movement
🟢 3-ball circuit design for stable tracking
🟢 Pack includes 1 bearing

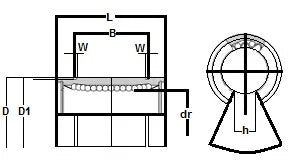

Dimensions Table:

🟢 Dynamic load rating: 578 N
🟢 Static load rating: 892 N
