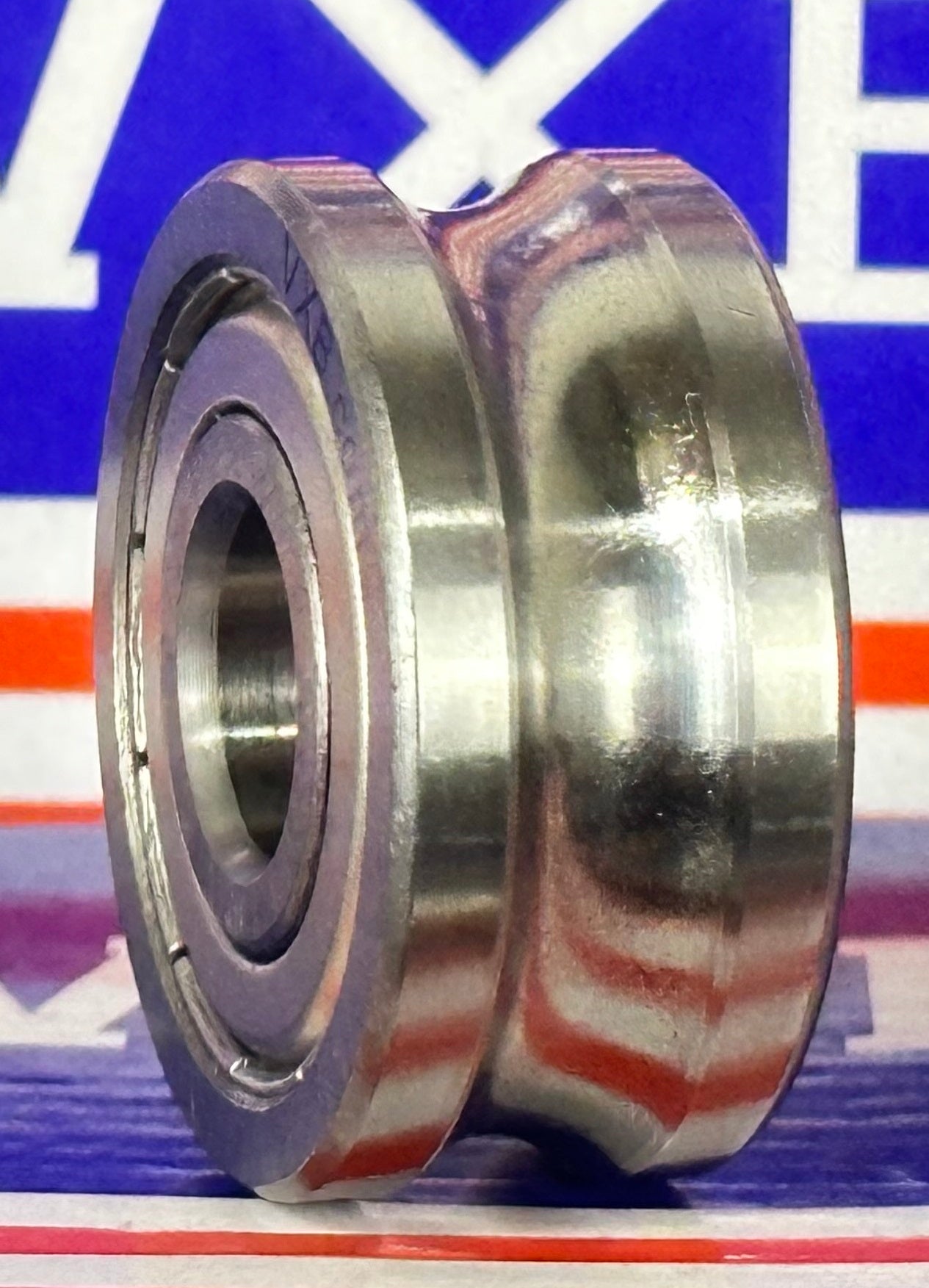

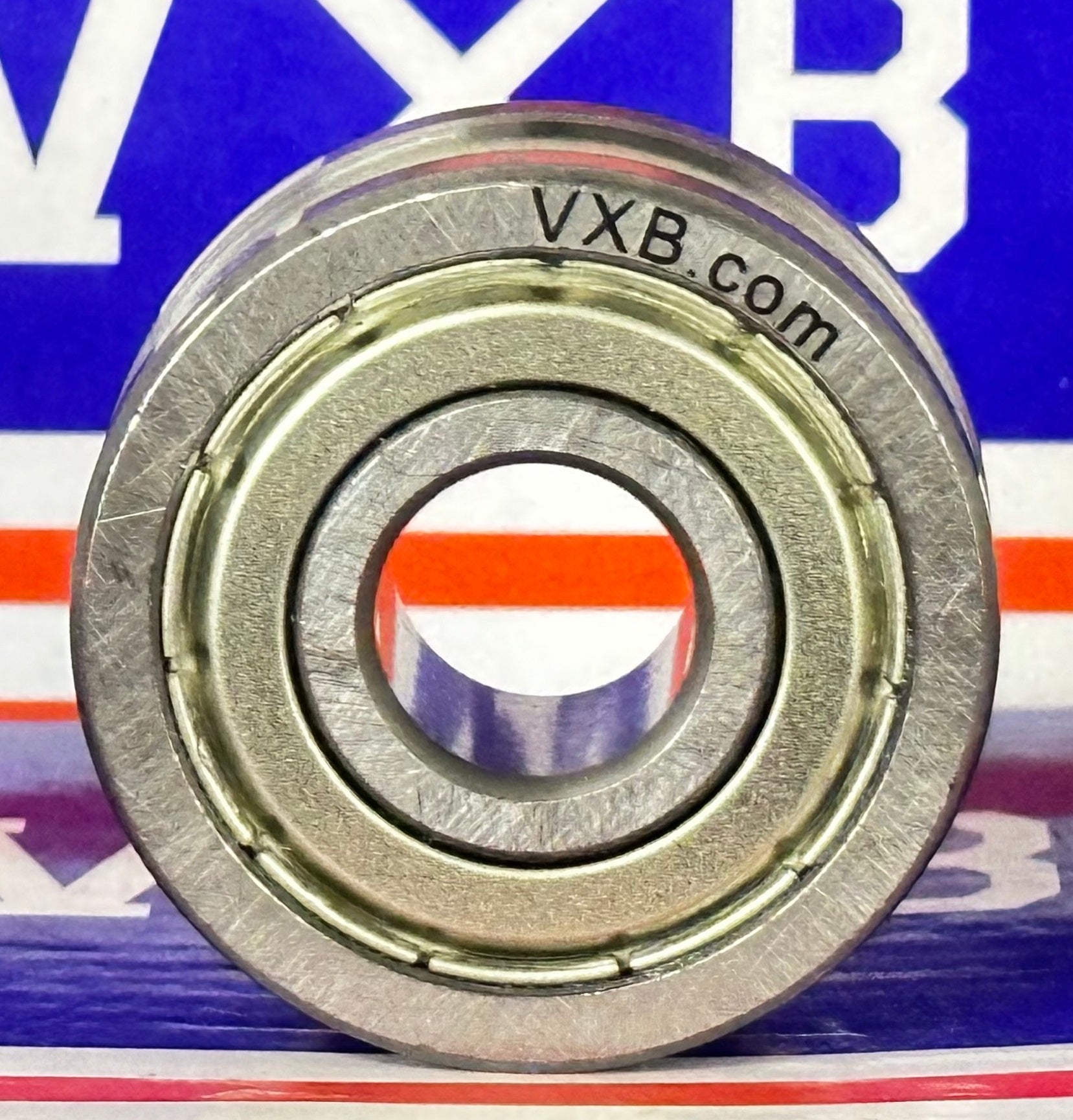

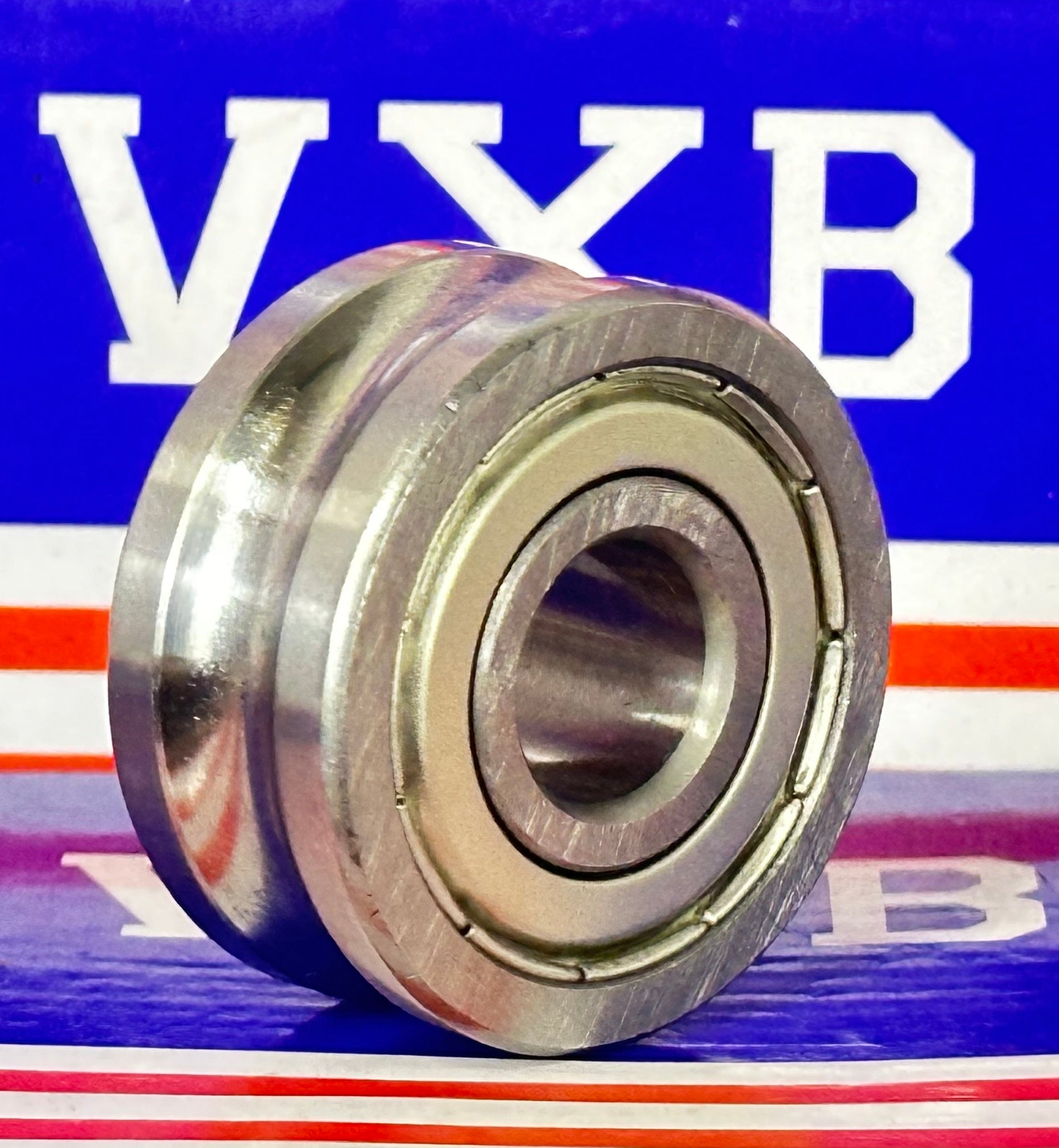

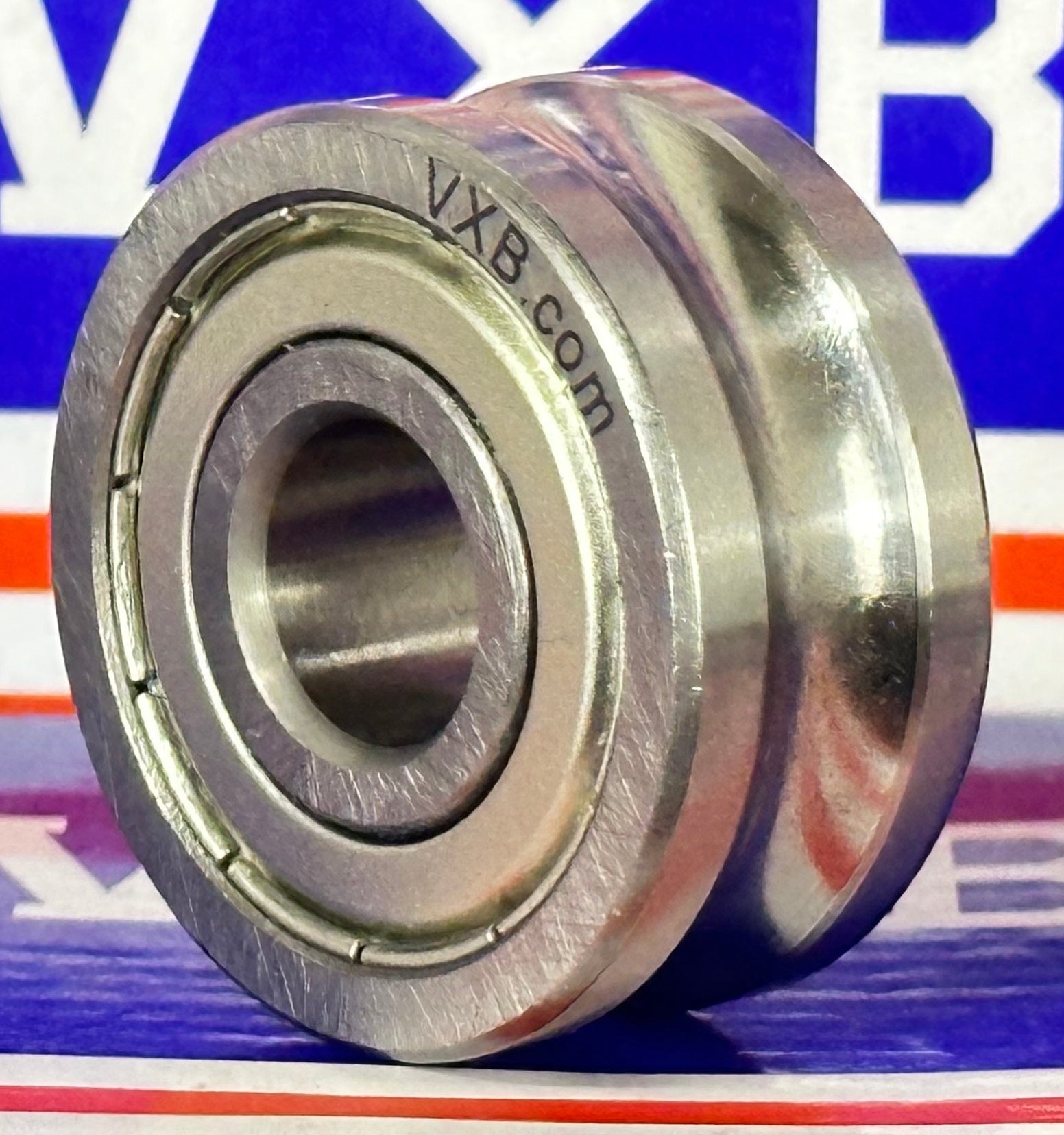

LFR5201-10KDD U-Groove Track Roller Bearing
12mm ID x 35mm OD x 15.9mm Width - U-Groove Guide Roller
The LFR5201-10KDD is a U-groove track roller bearing designed for use in linear motion systems, guide rails, and track rollers where quiet, smooth, and durable tracking is essential.
🟢 Item: LFR5201-10KDD Bearing
🟢 Type: U-Groove Track Roller Bearing
🟢 Quantity: One Bearing

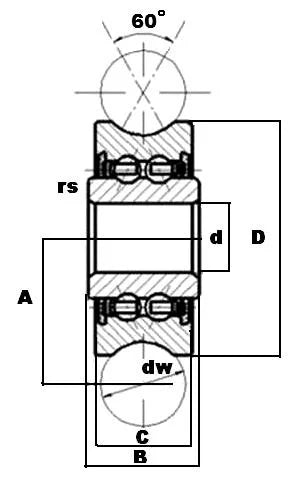

🟢 Inner Diameter (dw): 12mm
🟢 Outer Diameter (D): 35.0mm
🟢 Width (C/B): 15.9mm
🟢 Groove Width (A): 20.65mm
🟢 Groove Radius (rs): 0.3mm
🟢 Load Rating Dynamic (Cw): 8.5 kN
🟢 Load Rating Static (Cow): 5.1 kN
