Linear Stage Actuator 300mm Ballscrew 1605 Optical Axis Linear Rail Guide Manual Slide Stage C7 - Ruler for DIY CNC Router Controller 4-Axis Stage

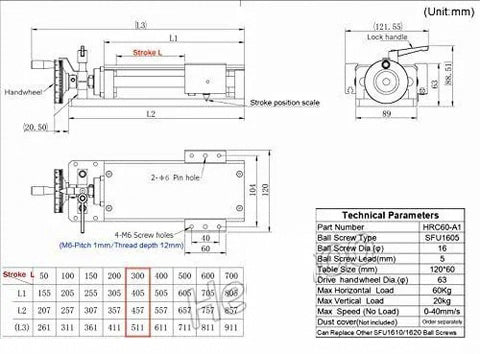

298mm Manual Linear Slide Table with Handwheel
✨ SFU1605 Ball Screw - C7 Accuracy - Dual Axis Guide

This 298mm (11.7") manual sliding table delivers smooth, quiet, and accurate linear motion, perfect for CNC setups, gantry platforms, and automation systems. Built on a sturdy 6061 aluminum profile, it features an SFU1605 C7-grade ball screw, dual optical-axis guides, a lockable handwheel with laser-engraved 360° scale, and a side-mounted HD ruler for precise manual control.

🟢 Stroke Length: 298mm (11.7")
🟢 Ball Screw: SFU1605 (16mm diameter, 5mm lead)
🟢 Ball Screw Accuracy: C7 (±0.02mm)
🟢 Repeatability: ±0.02mm
🟢 Bottom Plate Size: 89mm width x 61mm height
🟢 Structure: CNC-machined 6061 aluminum, sandblasted finish
🟢 Guide System: Double optical-axis linear rails
🟢 Handwheel: Laser-engraved 360° scale with pointer and locking mechanism
🟢 Side Ruler: HD guide for manual positioning
🟢 Mounting: Includes bracket with precision hole placement
🟢 Load Capacity at 200mm stroke:
- Horizontal: 60kg
- Vertical: 20kg (load decreases slightly with longer strokes)
🟢 Motor Compatibility: Stepper, servo, AC, or DC motors (motor base sold separately)
