Linear Stage Actuator 400mm Ballscrew 1605 Optical Axis Linear Rail Guide Manual Slide Stage C7 - Ruler for DIY CNC Router Controller XYZ-Axis Stage

400mm Manual Linear Slide Table with Handwheel
✨ SFU1605 Ball Screw - C7 Accuracy - Dual Axis Guide

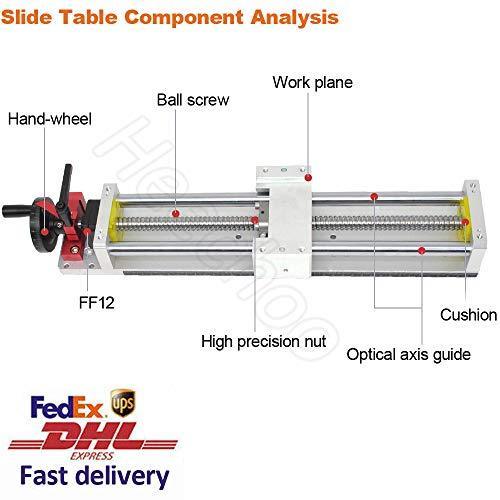

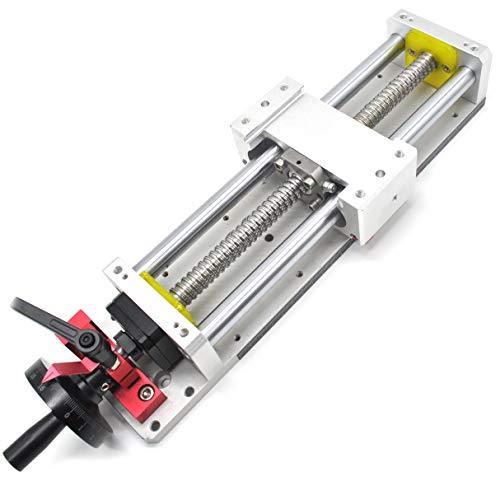

This 400mm (16") manual linear stage is a precision-built platform designed for smooth motion and modular expansion. Featuring an SFU1605 C7-graded ball screw and dual optical-axis guidance, it’s ideal for cross-slide setups, gantry builds, and multi-axis CNC machines. The unit includes a laser-engraved handwheel with a locking pointer and HD ruler for accurate manual positioning.

📦 Shipping Info: Ships within 10 to 14 days

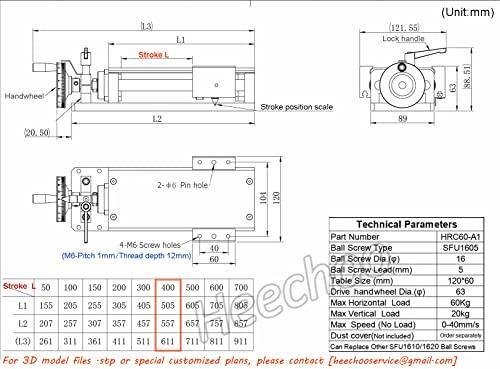

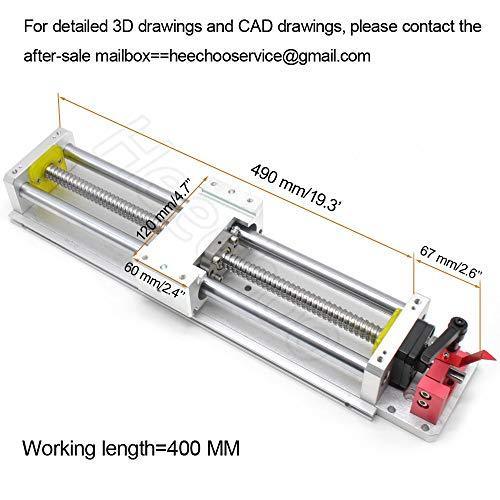

🟢 Stroke Length: 400mm (16")
🟢 Ball Screw Type: SFU1605 (16mm diameter, 5mm lead)
🟢 Ball Screw Accuracy: C7 (±0.02mm)
🟢 Repeatability: ±0.02mm
🟢 Bottom Plate Size: 89mm (W) x 61mm (H)
🟢 Structure: Sandblasted 6061 aviation-grade aluminum alloy
🟢 Guide: Dual optical-axis linear rail system
🟢 Mounting: CNC-processed holes for precise assembly

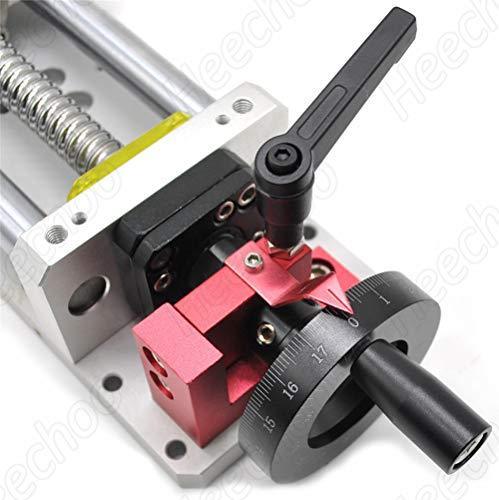

🟢 Handwheel: 360° laser-engraved scale with pointer and locking feature
🟢 Side Ruler: HD ruler for visible manual reference
🟢 Motion: Smooth, low noise, high speed
🟢 Load Capacity (400mm Stroke):
- Horizontal: 30kg
- Vertical: 15-20kg
🟢 Compatible with: Stepper, servo, AC, or DC motors (sold separately)
🟢 Suitable for: X/Y/Z axis, gantry systems, and multi-axis setups

💡 What makes this 400mm linear slide great for CNC and multi-axis systems?
Its modular design, precision-machined build, and compatibility with multiple motors make it perfect for expanding into 3-axis, 4-axis, or gantry systems - delivering accurate positioning and long-lasting smooth motion.

A handy, high-performance platform ready for customization and professional use.
