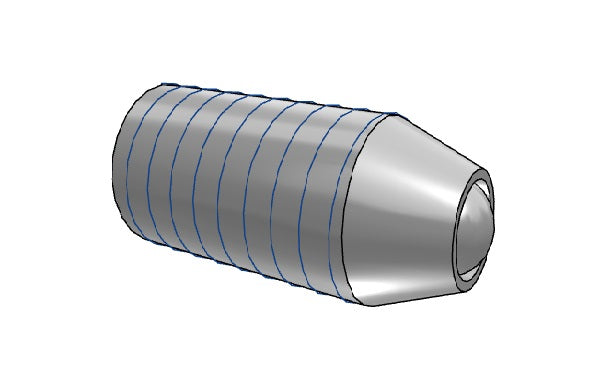

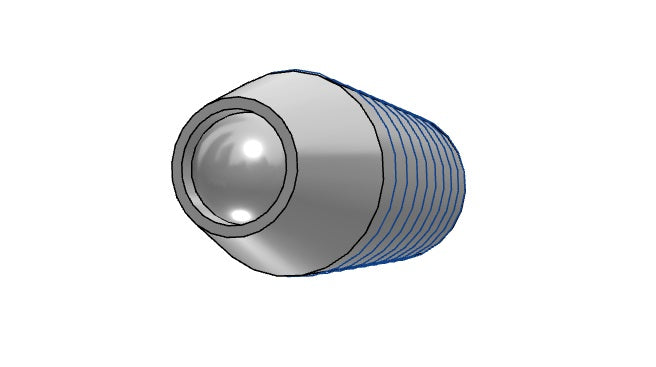

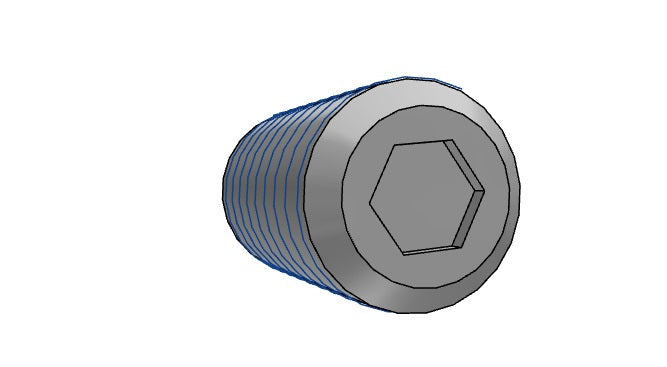

M3 7mm Length - Stainless Steel Miniature Spinning Ball Plunger Japan
M3 7mm Length - Stainless Steel Miniature Spinning Ball Plunger Japan
Regular price
$15.89 USD
Regular price
$22.99 USD
Sale price
$15.89 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
|
M3 7mm Long Stainless Steel Miniature Spinning Ball Plunger Japan |

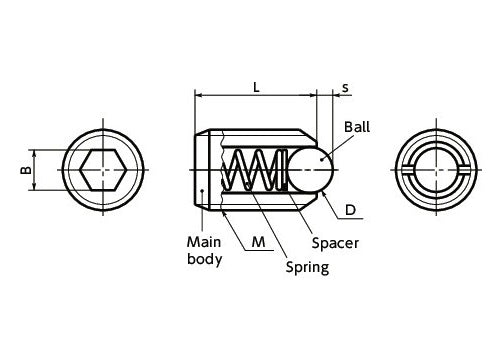

| M (Coarse) Nominal of Thread |
Pitch | s | L | D | B | Load(N) min./max. |
Mass (g) |
| M3 | 0.5 | 0.5 | 7 |
1.5 | 1.5 | 1.5/2.9 | 0.4 |
Material/Finish
| Main body | Equivalent to SUS304 |
| Ball | SUS440C (hardness: 55-60 HRC) |
| Spacer | SUS304 |
| Spring | SUS631J1 |
Characteristics
- There is a spacer between the ball and spring. The ball rotates.
- Made of all stainless steel. It is highly corrosion-resistant and heat-resistant.
- We also produce products of special specifications, e.g. dimensions, load and materials.
- Load type Heavy load

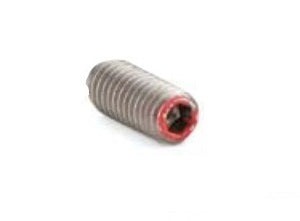

- Hexagon socket part is colored for identification. Red
