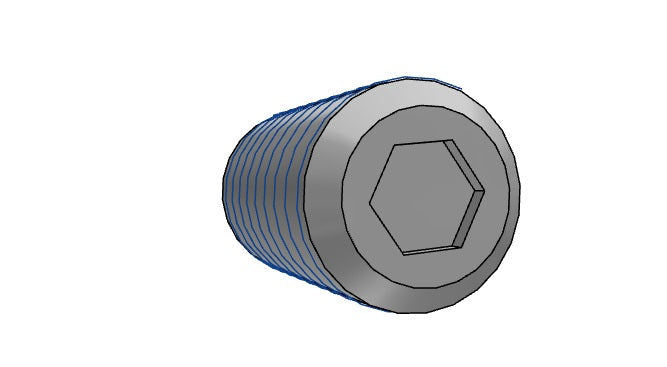

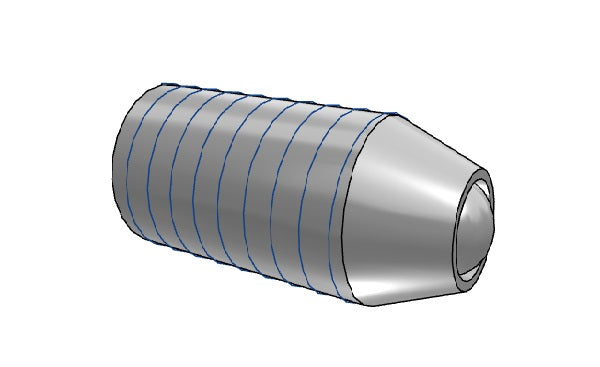

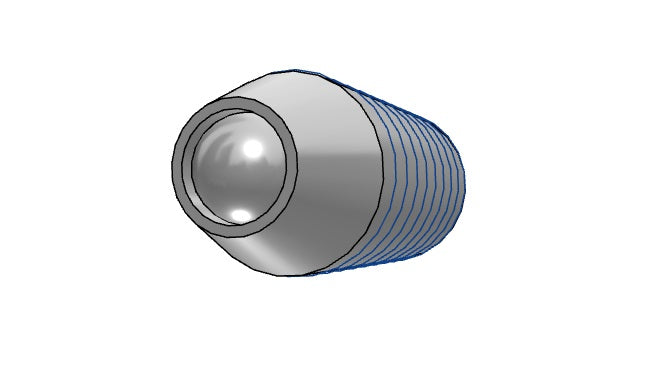

M8 x 15mm Stainless Steel Miniature Spinning Ball Plunger ✨ Super Heavy Load - Corrosion & Heat Resistant - Made in Japan
This high-performance M8 miniature ball plunger is built for serious jobs. With a 15mm body length and all-stainless steel construction, it’s designed for ultra-heavy-duty use. The rotating SUS440C ball reduces wear and tear on contact surfaces, while the internal spring provides strong, consistent force.

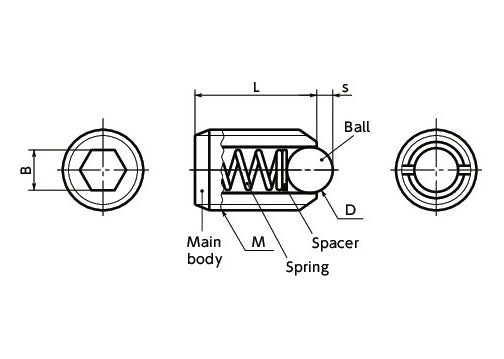

🟢 Thread Size: M8 (Coarse) 🟢 Thread Pitch: 1.25 🟢 Body Length (L): 15mm 🟢 Ball Diameter (D): 4mm 🟢 Ball Height (B): 4mm 🟢 Stroke (s): 1mm 🟢 Load Range: 13N (min) - 39N (max) 🟢 Weight: 3.5g 🟢 Load Type: Super Heavy Load 🟢 Color-Coded Hex Socket: Blue for easy ID
