M8 Bolt Type Ball Transfer Unit - Stud Mount ✨ 1" Main Ball - Heavy-Duty - One Unit
This M8 stud-type ball transfer unit features a 1" (25.4mm) main chrome ball and is designed for smooth, multi-directional movement of heavy loads. Ideal for building custom conveyor systems, transfer tables, or mobile workstations.
🟢 Main ball diameter: 1" (25.4mm) 🟢 Thread size: M8 🟢 Ideal for multidirectional load handling 🟢 Perfect for conveyors, machine feeders, and assembly lines 🟢 Durable and heavy-duty design

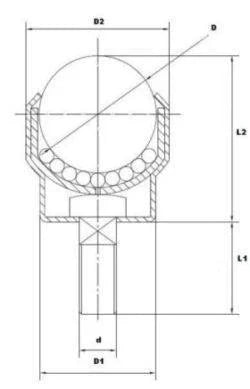

Dimensions (mm): 🟢 D (Ball): 25.4mm 🟢 D1 (Body Diameter): 25mm 🟢 D2 (Flange Diameter): 31mm 🟢 d (Thread): 8mm (M8) 🟢 L2 (Thread Length): 36mm 🟢 L1 (Body Length): 20.6mm 🟢 Quantity: 1 ball transfer unit
