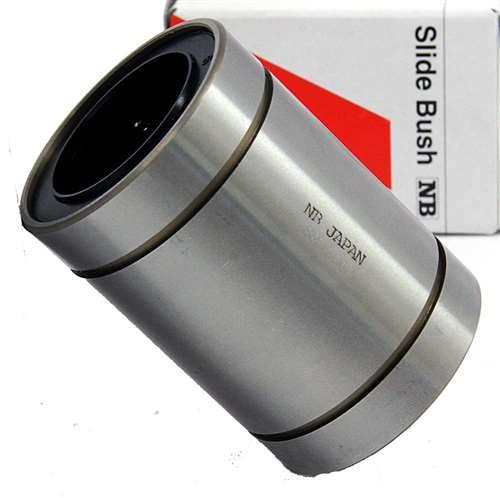

NB SM20UU 20mm Slide Bush Ball Bushings Linear Motion Bearing

NB SM20UU 20mm Slide Bush Ball Bushings Linear Motion Bearing

$58.42 USD
$64.99 USD $58.42 USD
Sale Sold out
Shipping calculated at checkout.
SM20UU Type Seals on Both Sides: Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


 SM20UU Linear Slide Bush, bearing is Seals on Both Sides, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • SM20UU Bearing
  • Linear Slide Bush
  • Shaft Diameter: 20mm
  • Number of Ball Circuits: 5
  • Dynamic Load Rating Cr: 882 N
  • Static load rating Cor: 1370 N
  • Quantity: 1 Bearing

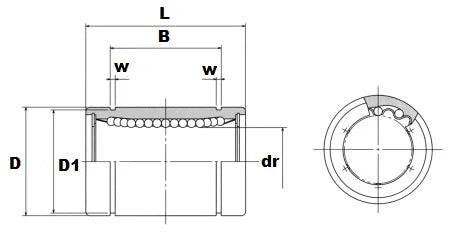

Major dimensions Eccentricity Radial Clearance
dr D L B W D1 Precision High
mm tolerance mm tolerance mm tolerance mm tolerance
precision high
20 0-7 0-10 32 0-16 42 0-0.2 30.5 0-0.2 1.6 30.5 10 15 -6
