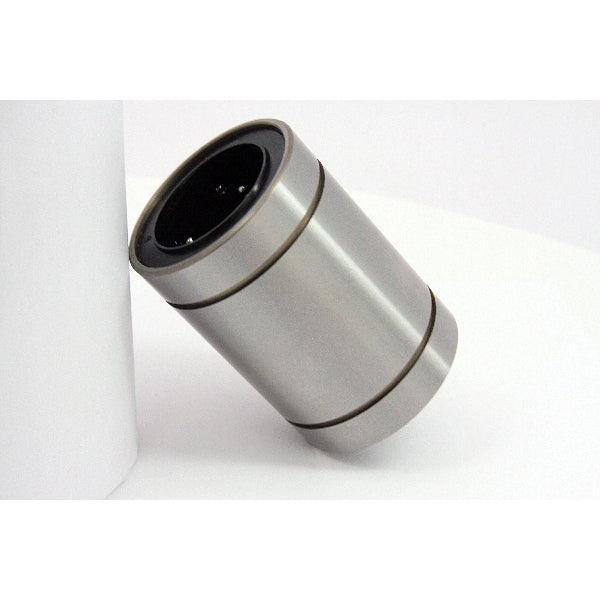

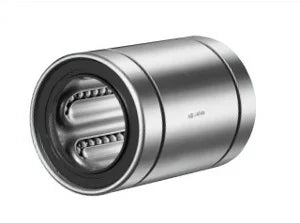

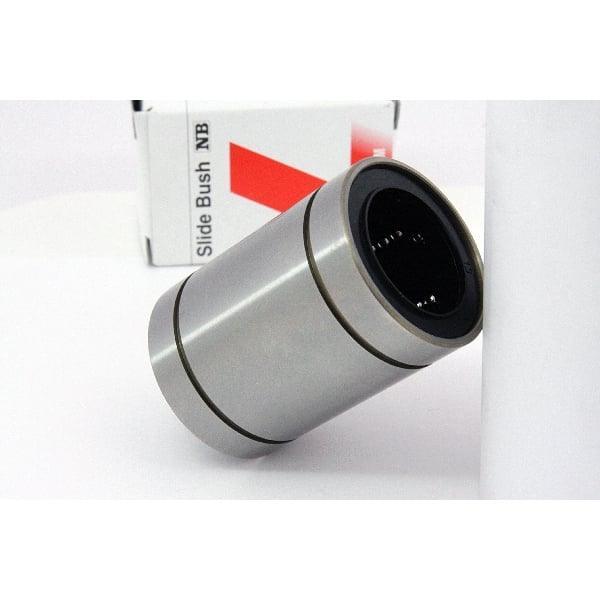

NB SMS20-P 20mm Ball Bushing Miniature Linear Motion

NB SMS20-P 20mm Ball Bushing Miniature Linear Motion

$115.95 USD
$128.99 USD $115.95 USD
Sale Sold out
Shipping calculated at checkout.
SMS20-P Stainless Steel Anticorrosion: Miniature Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Miniature Linear Systems


 20mm Stainless Steel Anticorrosion Miniature Linear Slide Bush, SMS20-P bearing is a Precision accuracy grade Miniature linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • SMS20-P Bearing
  • Linear Miniature Slide Bush
  • Accuracy Grade: Precision
  • Number of Ball Circuits: 5
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 882 N
  • Static Load Rating Cor: 1370 N

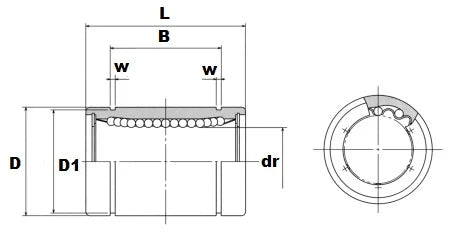

Major dimensions Eccentricity radial clearance
dr D L B W D1 Precision High
mm tolerance mm tolerance mm tolerance mm tolerance
precision high
20 0-7 0-10 32 0-16 42 0-0.3 30.5 0-0.3 1.6 30.5 10 15 -6
